Name: Customized High Speed PU Door Roller Shutter Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه رول فرمینگ درب کرکره ای
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Customized Shutter Door Roll Forming Machine,Customized PU Rolling Shutter Machine,High Speed PU Rolling Shutter Machine

Customized PU Rolling Shutter Machine

High Speed PU Rolling Shutter Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

شماره مدل:

دستگاه رول فرمینگ درب کرکره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

کت و شلوار برای مواد:

گسی

سرعت فرم:

10-15 متر در دقیقه

ایستگاه های شکل دهی:

حدود 18

ضخامت:

0.8-1.2 میلی متر

موتور:

22 کیلو وات

ماده شفت:

درجه عالی No.45 فورج

عرض مادی:

397 میلی متر

فولاد غلتکی:

فولاد 45 # روکش کروم سخت

ماده غلتکی:

cr12mov

قدرت هیدرولیکی:

5.5 کیلووات

برجسته کردن:

Customized Shutter Door Roll Forming Machine,Customized PU Rolling Shutter Machine,High Speed PU Rolling Shutter Machine

Customized PU Rolling Shutter Machine

High Speed PU Rolling Shutter Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

برهنه با فیلم پلاستیکی.

زمان تحویل

45 روز جهانی

شرایط پرداخت

L/C، T/T

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

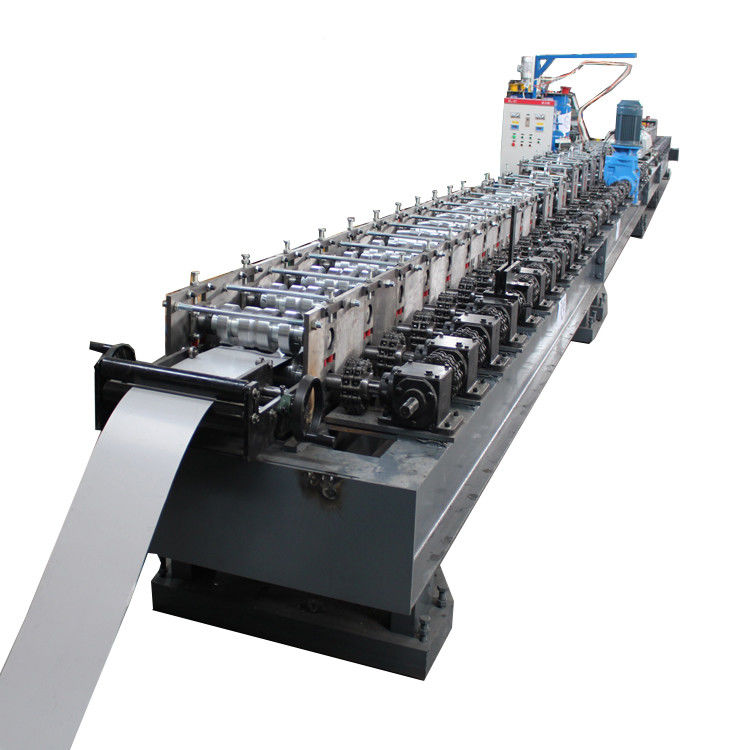

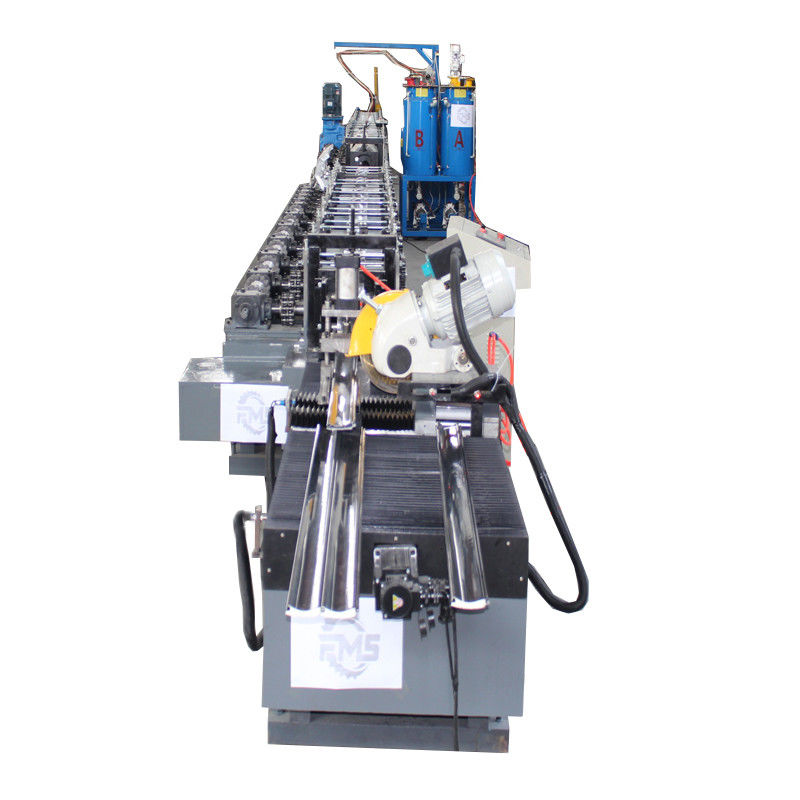

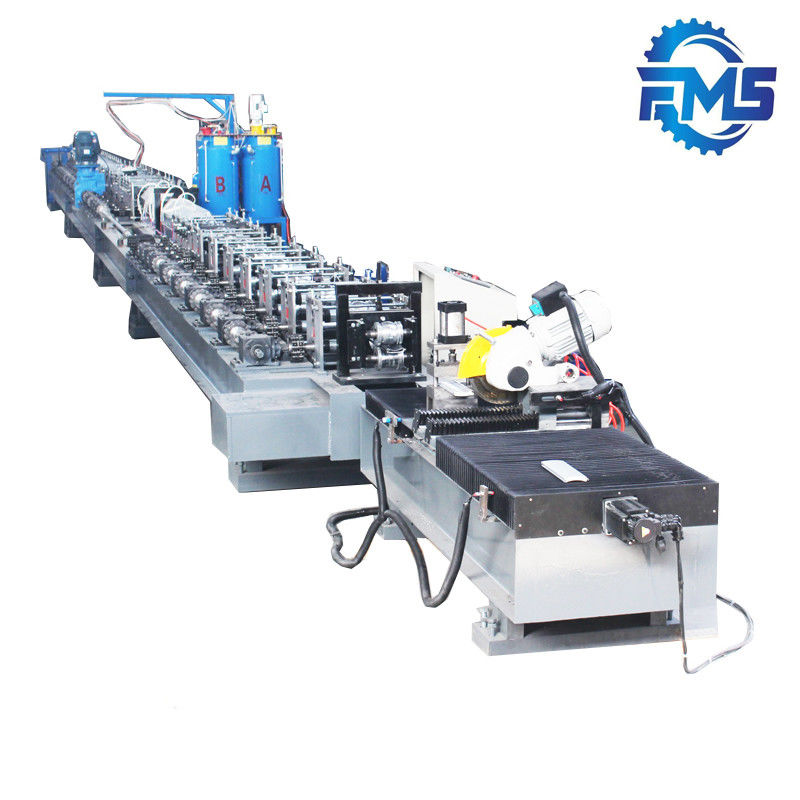

Customized High Speed PU Door Roller Shutter Roll Forming Machine
Put the steel coil on the un-coiler----Feeding guide equipment----Roll-forming Machine----Foaming machine ----Adjusting device ----Punching device----Flying saw cutting-----finished products on stacker

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thuscontinuous automation production of foaming roller shutter door is achieved.

Customized High Speed PU Door Roller Shutter Roll Forming Machine

1. Rolling up and down, the noise is smaller, the work is quieter, which means less damage to the door every day, longer working hours, and more suitable for human care in some crowded areas.

2. PU shutter doors and windows are sound absorbing materials, so once you shake the shutter door, most of the street sound will be absorbed by the foam in the shutter door.

3. Fireproof and energy saving: The foam density is large, which can save area energy and fire. Therefore, it is highly recommended to install the main door and window in a safer and more economical room

Specification

Warranty of core components	1 Year
Voltage	380V 50Hz
Weight	9000kg
Production Capacity	5-8m/min
Power	22Kw
Dimension(LWH)	2011.2m
Applicable Material	UPVC, Aluminum
Production Capacity	8-15M/Min
Voltage	380V.50HZ.3Phase
Weight	9000 kg
Roll material	45# high grade steel
Cutting blade material	Cr 12 high grade steel
Frame material	300 H-high grade steel
Core Components	Motor, PLC
Roll stations	18 rows
Rolling thinckness	0.3-0.8mm
Dimension(LWH)	20112m

Customized High Speed PU Door Roller Shutter Roll Forming Machine 0

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
