PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine

PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE

شماره مدل:

دستگاه تشکیل رول رول بام

با ما تماس بگیرید
درخواست قیمت
جزئیات محصول
ولتاژ:
380 ولت، 50 هرتز، 3 فاز
وزن:
حدود 3500 کیلوگرم
استفاده کردن:
پانل دیواری ورق سقف
ابعاد (L*W*H):
7*1.2*1.2 متر
مواد خام:
GI، ورق گالوانیزه، ورق PPGI/گالوانیزه
قدرت (W):
5.5 کیلووات
سیستم کنترل:
PLC
ماده غلتکی:
فولاد 45# با ماشینکاری CNC و سطح کروم سخت است
ضخامت:
0.3-0.7 میلی متر
ایجاد سرعت:
8-15 متر در مسافت
نام:
ورق سقف سرد فلزی کنترل PLC ساخت رول پانل دیواری کاشی سقف ماشینی
شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
negotiable
جزئیات بسته بندی
برهنه با فیلم پلاستیکی.
زمان تحویل
45 روز جهانی
شرایط پرداخت
T/T ، L/C
قابلیت ارائه
20 ست در ماه
محصولات مرتبط
قیمت خوب Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine آنلاین ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار
قیمت خوب Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw آنلاین ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار
با ما تماس بگیرید
هم اکنون تماس بگیرید
توضیح محصول

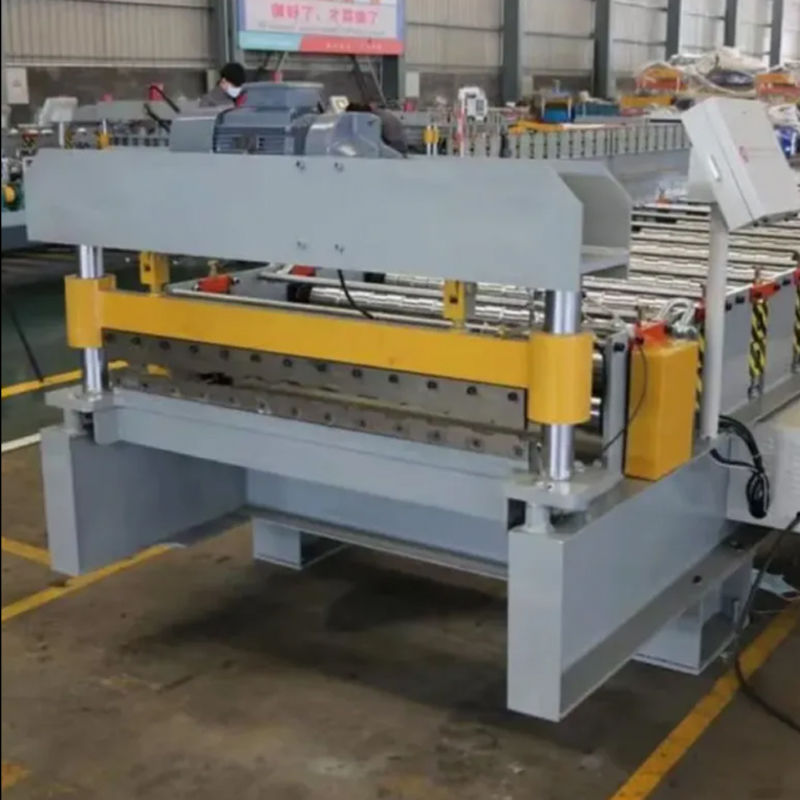

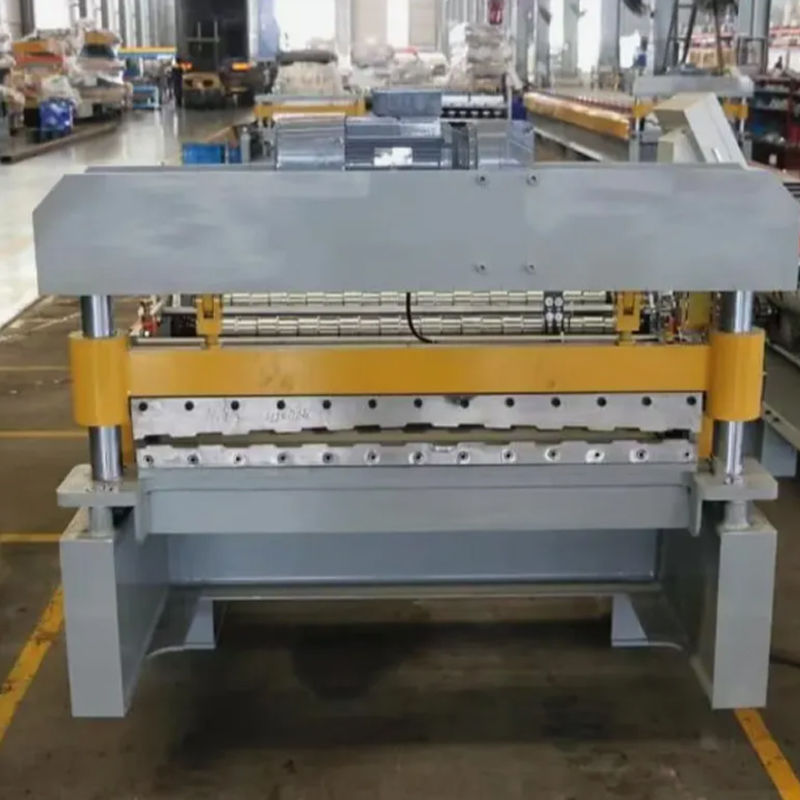

The PLC Control Metal Cold Roofing Sheet Making Machiney Roof Tile Wall Pannel Roll Forming Machine is composed of hydraulic shear head, roll forming system, electrical system, etc.



The roofing sheet wall pannel roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 8to 15 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.



Specification

Warranty of core components 1 Year
Voltage 380V 50Hz
Weight 3500kg
Production Capacity 8-15m/min
Power 5.5Kw
Dimension(L*W*H) about 7000*1200*1200mm
Applicable Material GI,PPGI  (According to customer requirements)
Production Capacity 8-15M/Min
Voltage 380V.50HZ.3Phase
Roll material 45# high grade steel
Frame thickness 16mm
Core Components Motor, PLC
Roll stations 12
Rolling thinckness 0.3-0.7mm


PLC Control Metal Cold Roofing Sheet Making Machiney Roof  Tile Wall Pannel Roll Forming Machine 0


Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation


Payment terms
40% in advance as down payment
60% is paid before the shipment is processed



Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.


RFQ

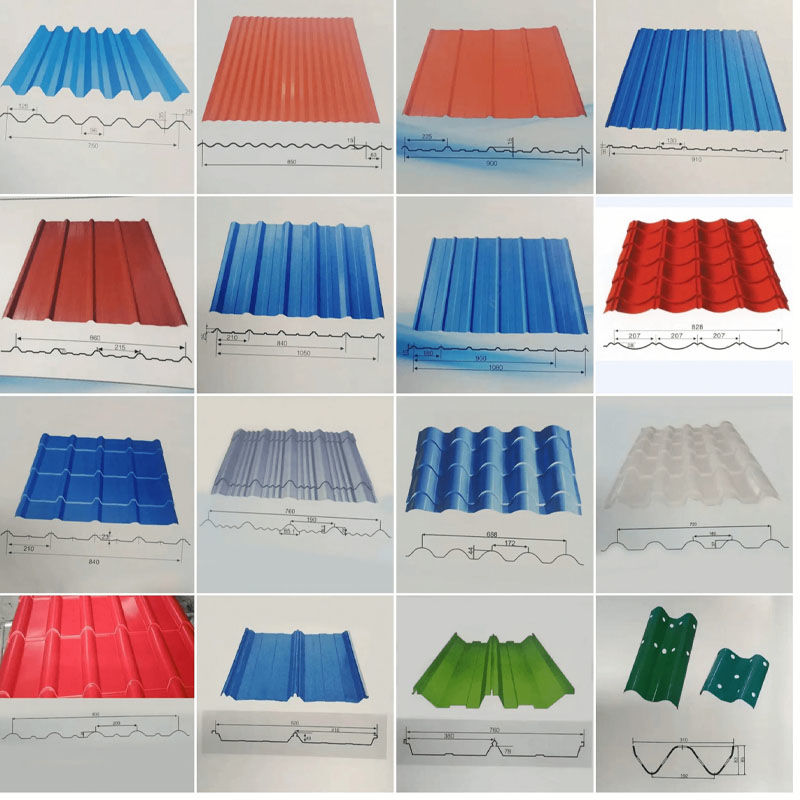

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

4. Are you manufacturer or trading company?
We are manufacturer and trading company .

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
