Name: 2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سقف قوسی منحنی
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic

hydraulic roofing sheet roll forming machine,roofing sheets crimping bending machine,factory price roll forming machine

roofing sheets crimping bending machine

factory price roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

سقف قوسی منحنی

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ورق های سقف قوس کمبر انحنای رول فرمینگ ماشین هیدرولیک

مواد خام:

PPGL,GL,PPGI,GI,

ابعاد (L*W*H):

2050*1500*1300

وزن:

4 تن

ماده شفت:

45# قطر بیرونی فولاد: 70 میلی متر

عرض تغذیه:

925 میلی متر

سیستم کنترل:

PLC

ولتاژ:

220V/380V/440V

برجسته کردن:

hydraulic roofing sheet roll forming machine,roofing sheets crimping bending machine,factory price roll forming machine

roofing sheets crimping bending machine

factory price roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

40 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

2025 Factory Price for Crimping Bending Roofing Sheets Roll Forming Machine Hydraulic

Product Specifications

Attribute	Value
Product Name	Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic
Raw Material	PPGL, GL, PPGI, GI
Dimension (LWH)	205015001300
Weight	4 Tons
Shaft material	45# Steel Outer Diameter: 70mm
Feeding width	925mm
Control System	PLC
Voltage	220V/380V/440V

Product Description

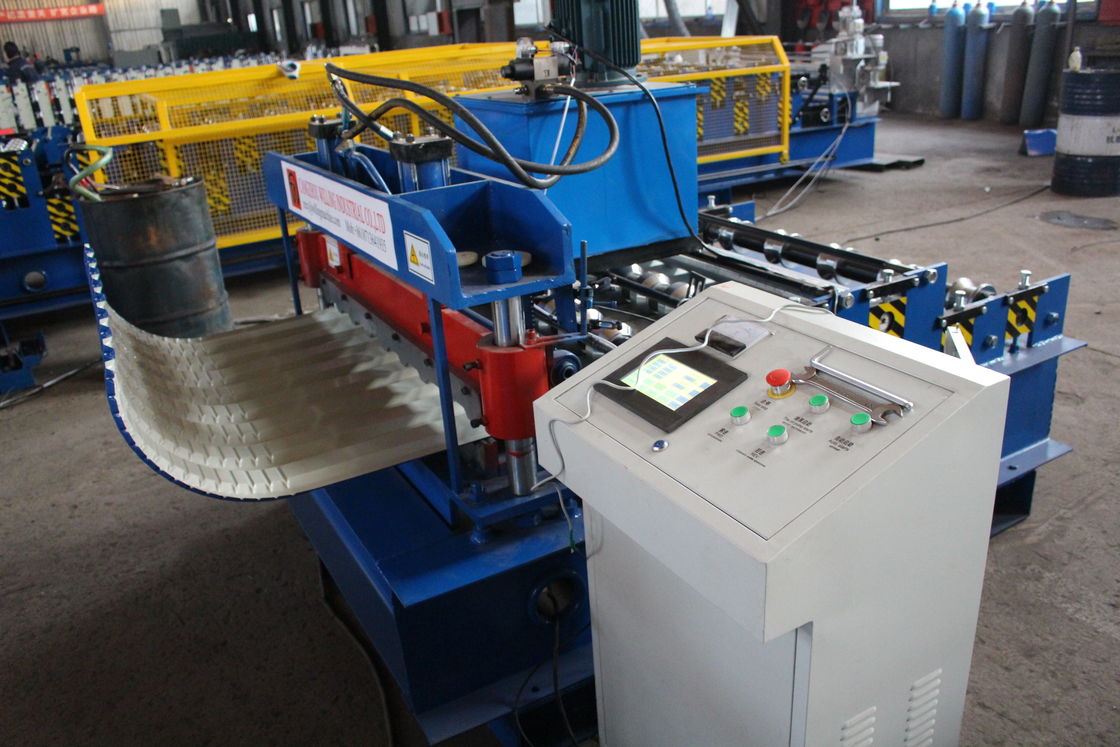

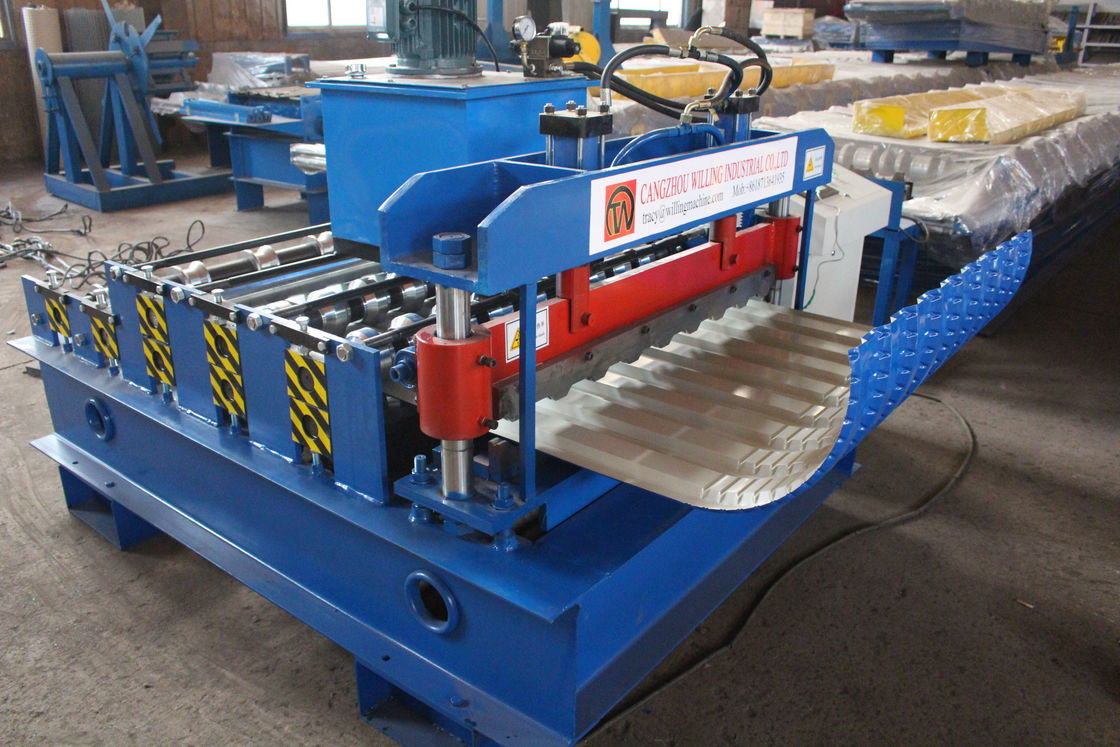

Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic

Famous Brand, quality is guaranteed.
Full Automatic Computer Control makes operation easy.
Machine roller and shaft are produced by exact demands and control. The roller material processing method is by CR12 MOV heat treatment 58℃-62℃. The product quality is durable with long service life.

Technical Specifications

Weight	4 Tons
Frame Material	350H Steel
Side Panel Of Machine	16mm
Color	All colors (standard international color) or Customized
Rollers	5 rollers
Roller material	45# steel Cr12 Mov HRC 58-62
Diameter Of The Shaft	Φ70mm
Drive Mode	Chain Wheel and Cycle Chain Length: 1 Inch
Productivity	10-15m/min
Voltage	380V 50Hz 3phases (Can be customized according to local voltage)

Warranty Information

1. Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (except Electrical parts).

2. Repairs will not be performed even during the guarantee period in the following circumstances:

Damage occurs due to a natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to further movement or shipment after installation

Payment Terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery Information

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
