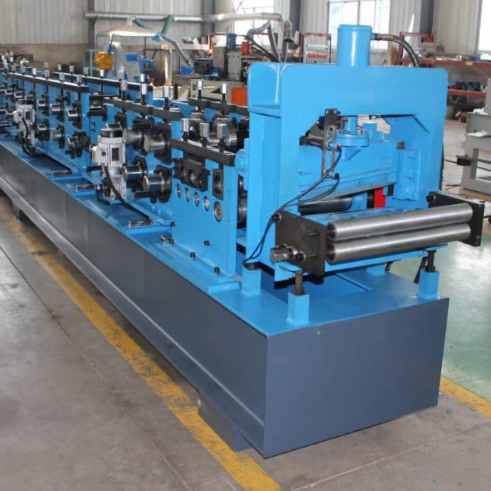

CZ Purlin Roll Forming Machine with 16 Roller Stations Automatic Fixed-Length Cutting and Hydraulic Station for High Efficiency

16 Roller Stations CZ Purlin Roll Forming Machine,Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine,Hydraulic Station C Panel Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ دین ریل دستگاه گل میخ پروفیل امگا

مواد خام:

PPGI، گالوانیزه

سرعت:

8-15 متر در دقیقه

ضخامت مواد:

1 میلی متر - 3 میلی متر

وزن:

9 تن

گارانتی:

1 سال

قدرت:

15 کیلووات

سیستم کنترل:

PLC

برجسته کردن:

16 Roller Stations CZ Purlin Roll Forming Machine,Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine,Hydraulic Station C Panel Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Steel C/Z Purlins Machine - C/Z Purlin Forming Machine - C Panel Forming Machine

The Omega hat-shaped steel purlin forming machine is a complete system consisting of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, and computer control cabinet.

The machine produces hat-shaped purlins with excellent bending and compression resistance, superior flatness, and features automatic fixed-length cutting and punching. Its high automation level ensures quick and convenient installation.

Technical Specifications

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm - 3 mm
3	Working Speed	8-15m/min (excluding cutting time)
4	Roller Station	16 Rows
5	Dimension	650013001200 mm
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES (customizable)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45# steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Applications

The hat-shaped steel purlin forming machine serves as the primary stress structure for large and medium-sized industrial and civil buildings. It's used for:

Creating non-load-bearing walls and roof decorations with plasterboard, gypsum board, and other lightweight materials
Constructing various decorative building roof shapes
Forming interior and exterior building walls and ceiling scaffolding base materials

The products are ideal for hotels, theaters, shopping malls, factories, office buildings, renovation projects, interior decoration settings, and various roof applications.

Key Advantages

Automatic control software for production information management
Simple operation and easy maintenance
Quick mechanical debugging and mold replacement
Highly integrated network automation system for superior performance
