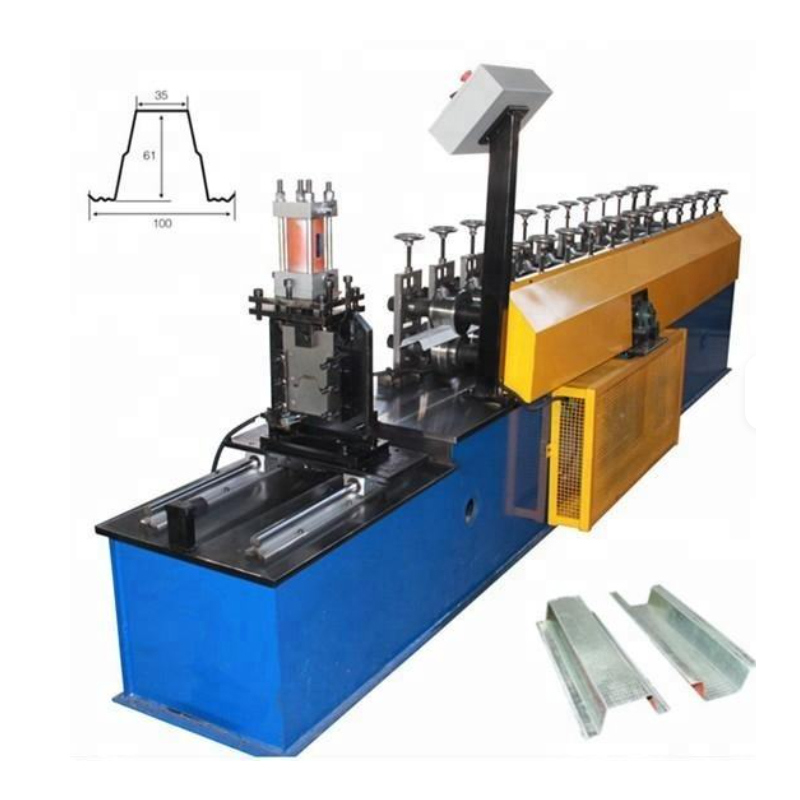

Name: Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مطالعه و پیگیری
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Omega profile steel framing machine,light keel roll forming machine,top hat channel forming machine

light keel roll forming machine

top hat channel forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

مطالعه و پیگیری

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی کانال کلاه بالا قاب استیل سبک پروفیل امگا

ابعاد (L*W*H):

6.5 * 0.85 * 1.2 متر

مواد خام:

گالوالوم، گالوانیزه

سرعت کار:

10-20 متر در دقیقه

برش مواد تیغه:

Cr 12 فولاد درجه یک

قدرت موتور:

4 کیلو وات

وزن:

3000 کیلوگرم

ولتاژ:

3 فاز 380 ولت / 50 هرتز (به درخواست مشتری)

ضخامت مواد:

0.4-0.8 میلی متر

برجسته کردن:

Omega profile steel framing machine,light keel roll forming machine,top hat channel forming machine

light keel roll forming machine

top hat channel forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Product Description

Omega Sheet Metal Roll Forming Line Machine Fully Automated

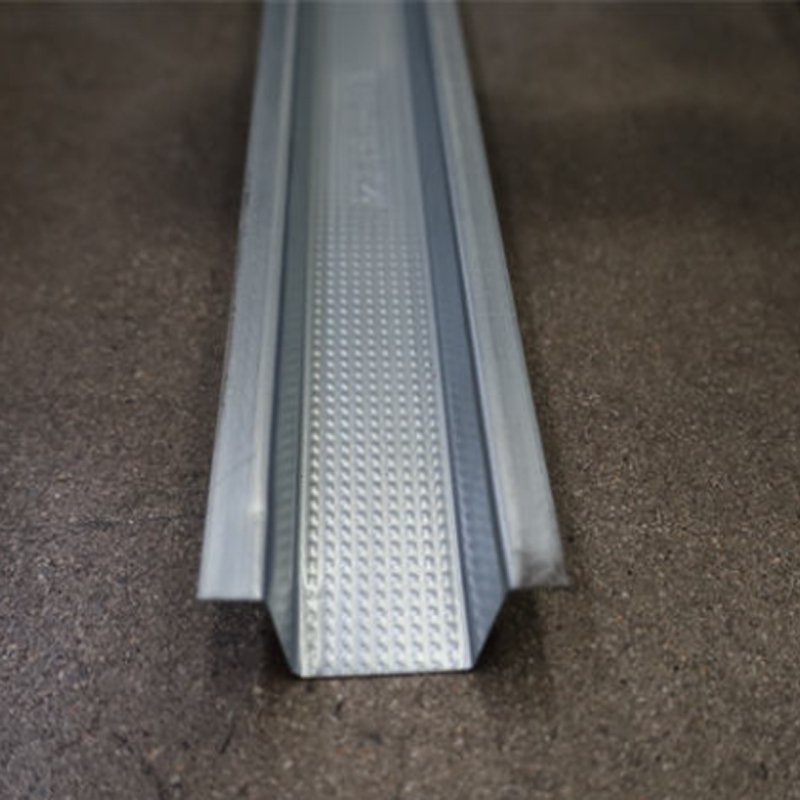

Metal framings used in concealed grid gypsum ceiling of light weight structure include furring channel, carrying channel, studs, tracks, wall angle, and main frame channel.

Optional: Embossing logos on the frames is a great way that most of our customers choose to impress their customers about their brands.

Specification

Description	Explanation
Working speed	10-20 m/min (Shear time is not included)
Pressed plate thickness	0.3-1mm
Control mode	Panasonic PLC
Number of molding passes	18 lanes [Electric width adjustment]
Roll material	Gcr15 quenching of steel after finishing HRC58-62℃, surface chrome plating
Shaft material and diameter	45# Steel finishing, Shaft diameter is￠76mm
Main engine power	5.5kw
Power of hydraulic station	3kw
Hydraulic pressure	12Mpa

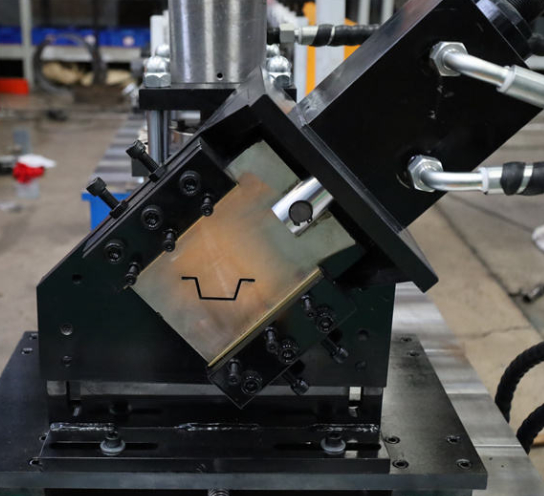

Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ, 3 phase (According to customer requirements can be adjusted)
Transmission mode	1.0 inch double row chain
Equipment form	Card structure
Equipment color	Company color
Equipment size	LWH--11.5m1.6m1.2m
Date of delivery	45 days
Payment method	30% advance charge, 70% pay off on delivery

Payment Terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 45 days after the down payment is received.

Packing and Shipping

Packaging: Naked with Plastic Film.

Shipping: Via sea freight to nearest port (customer arranges inland transport). Shipping fees calculated based on destination.

FAQ

1. Does one machine can only produce one style panel profile?

Not exactly. For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?

Our machine's warranty period is 12 months. If the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost yourself. If after warranty period, we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?

Yes, please tell me the destination port or address. We have rich experience in transport.

4. Are you manufacturer or trading company?

We are manufacturer and trading company.

5. Do you provide customized?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?

1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
