Name: EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه ساندویچ پانل رول فرمینگ
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه ساندویچ پانل رول فرمینگ >

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

EPS rock wool sandwich panel machine,roof sheet roll forming machine,sandwich panel roll forming machine with warranty

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

محل منبع:

چین

نام تجاری:

FMS

گواهی:

شماره مدل:

دستگاه ساندویچ پانل رول فرمینگ

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

قطر شفت:

70 میلی متر یا به عنوان نیاز شما

مواد شفت:

فولاد فرفورژه 45# درجه بالا

تیغه برش:

فولاد قالب CR12 با عملیات خاموش شده

سرعت شکل گیری:

8-15 متر در دقیقه

مواد تیغه برش:

Cr12MOV، عملیات حرارتی

منبع تغذیه:

380 ولت، 3 فاز، 50 هرتز

مواد شفت:

فولاد درجه بالا 45#، قطر 70 میلی متر

ضخامت:

0.3-0.8mm

مراحل تشکیل:

11 ایستگاه

قدرت:

5.5 کیلو وات

عرض مواد:

1200 میلی متر

برجسته کردن:

EPS rock wool sandwich panel machine,roof sheet roll forming machine,sandwich panel roll forming machine with warranty

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1SET

قیمت

negotiable

جزئیات بسته بندی

برهنه با فیلم پلاستیکی.

زمان تحویل

45 روز جهانی

شرایط پرداخت

T/T، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

بهترین قیمت رو بدست بیار

ویدئو

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

بهترین قیمت رو بدست بیار

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

بهترین قیمت رو بدست بیار

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

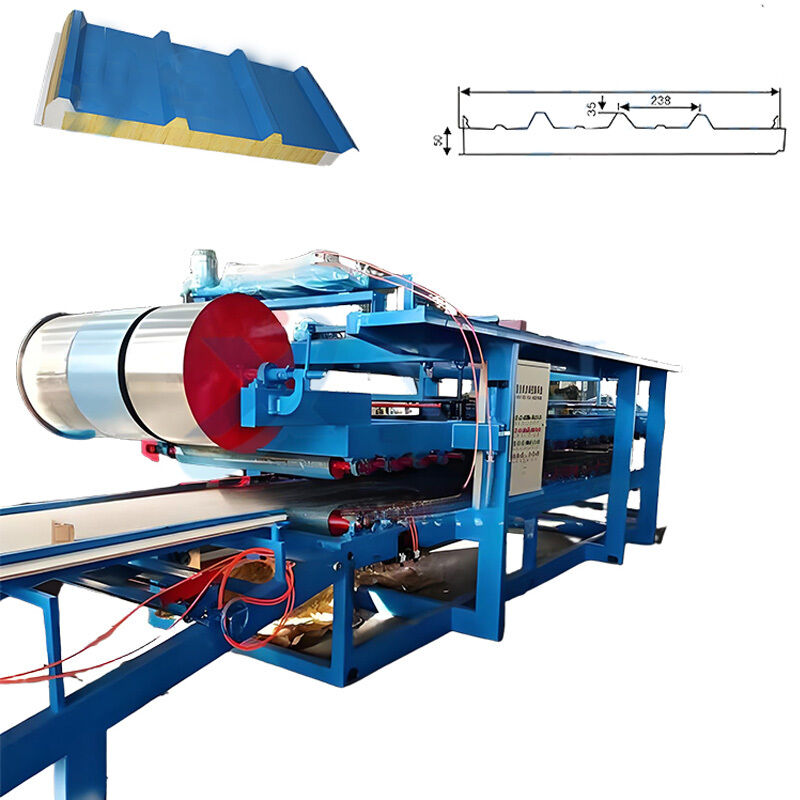

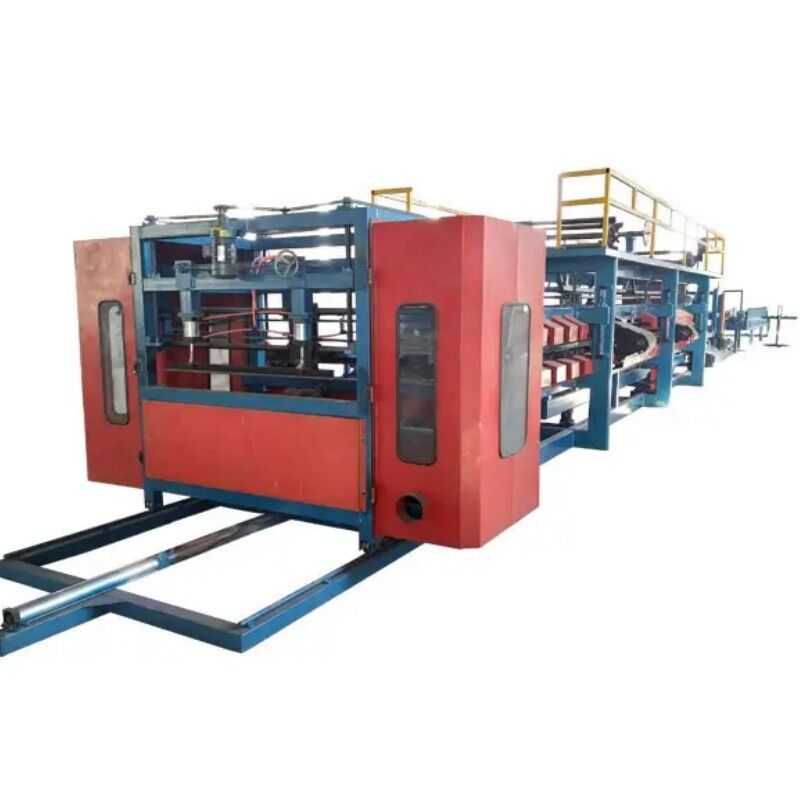

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

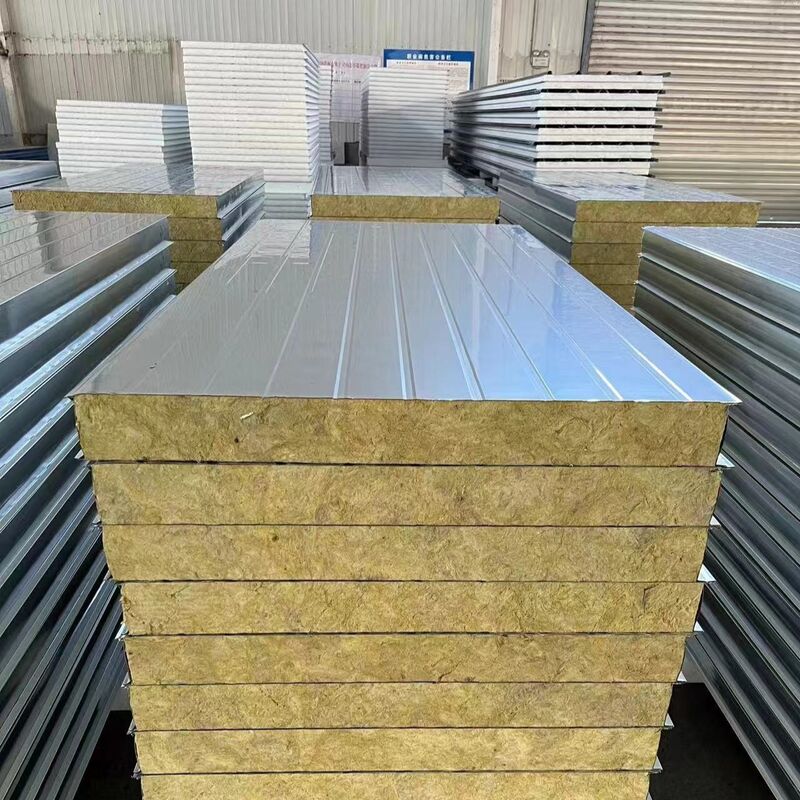

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.

Main Functions

EPS board processing: cutting and trimming operations
Rock wool processing: cutting and precise paving
Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
Final molding: forming composite boards to meet required specifications

Equipment Composition

EPS board processing unit: handles cutting and trimming of EPS boards
Rock wool processing unit: manages cutting and paving of rock wool
Composite unit: bonds EPS board and rock wool together
Molding unit: ensures composite boards meet dimensional specifications
Control system: automated control of the entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Main Motor Power	7.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed during the guarantee period in the following circumstances:

Damage occurs due to natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.

What support do you provide if the machine breaks down?

Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.

Can you handle transportation?

Yes, please provide your destination port or address. We have extensive experience in transportation logistics.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide custom solutions?

Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
