Name: Durable Cut To Length And Slitting Line HR CR SS GI Steel Coil Slitting Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 1600
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Durable Cut To Length And Slitting Line HR CR SS GI Steel Coil Slitting Machine

cut to length line machine,coil cut to length line

coil cut to length line

محل منبع:

چین

نام تجاری:

cangzhou willing

گواهی:

CE,ISO

شماره مدل:

1600

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

استفاده کردن:

نوار

نام محصول:

ضخامت 2 میلی متر 1600 میلی متر عرض HR CR SS GI خط برش کویل فولادی

مواد خام:

کویل فولادی HR CR SS GI

ضخامت:

0.4-2 میلی متر

سرعت خرد کردن:

20-30 متر در دقیقه

عرض سیم پیچ:

1600 میلی متر

برجسته کردن:

cut to length line machine,coil cut to length line

coil cut to length line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

50 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

بهترین قیمت رو بدست بیار

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

2mm Thickness 1600mm Width HR CR SS GI Steel Coil Slitting Line

1. Features:
corresponding width of metal work, and recoil the finished working piece.

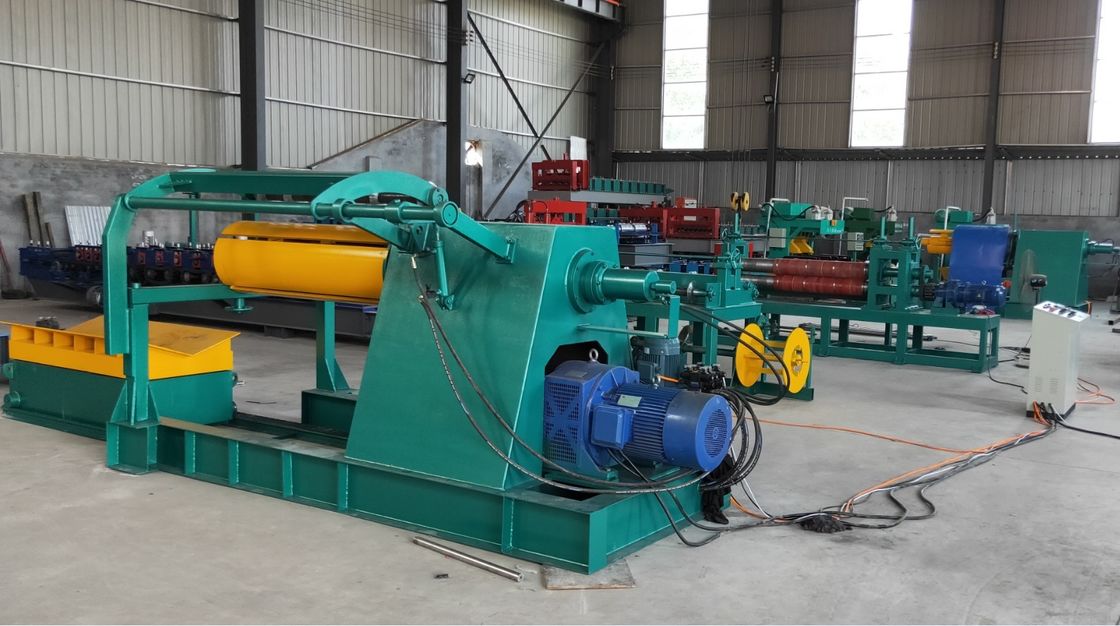

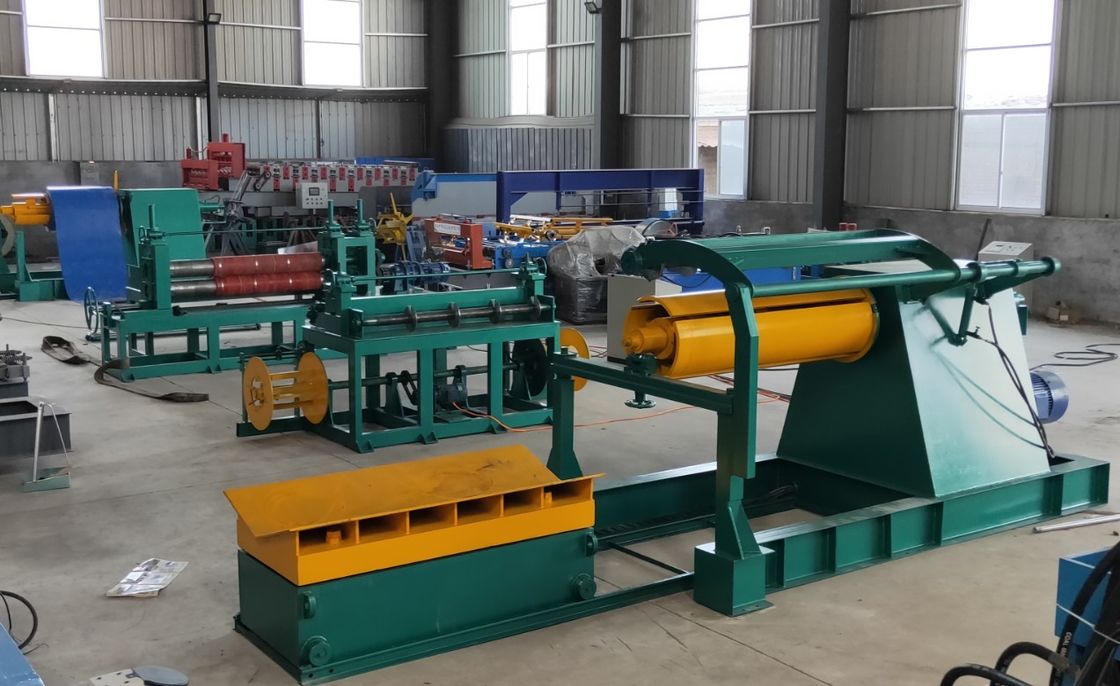

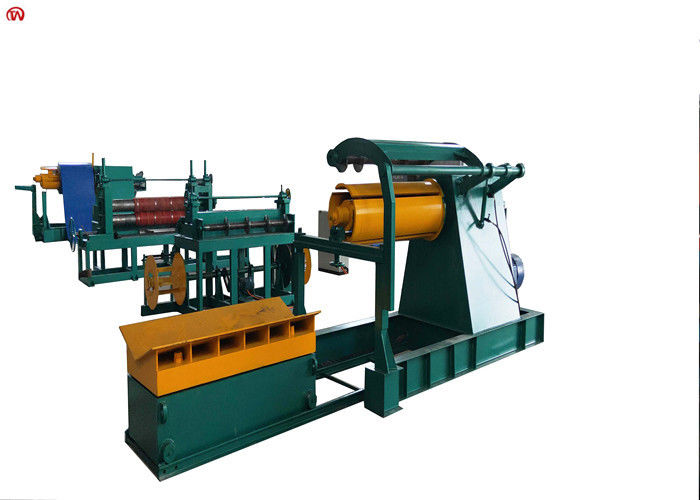

It consists of Decoiler Machine, Feeder Machine, Slitting Machine, Scrap Filament Winding Machine, Slurry Guide, Tension Table, Recoiler Machine
etc.
Through change and arrange of the different specification blade spacer This line is a complete equipment for slitting to strip by or moving blade seat, can slit to different width working piece.

Item	Unit	Optional range
Plate thickness	mm	0.3 - 2
Standard width	mm	1600
Uncoiled weight	T	5
Slitting width precision	mm	±0.1-0.3
Max, slitting number	pcs	9
Highest line speed	m/min	20-30
Total power	Kw	40-50kw

2. Process flow
Decoiler Machine---- Feeder Machine ---- Slitting Machine ---- Slurry Guide ---- Tension Table----Recoiler Machine

3. Technical Parameters

A.Decoiler
Tape outer diameter:¢508-¢1600mm
Tape outer width:600-1500m
Shaft diameter:¢180mm
Tight range:¢485mm--¢518mm
Tape Max roll weight:5 T
Working Speed:20-30 m/min
Roller Diameter:¢508mm
Effective length of the roll:1600mm
Center drive motor:5.5 kw
Car tape width:600mm--1600mm
Car loading weight:5T
Car Roll diameter:¢1000-¢1500mm
Car moving speed:4m/min

B. Slitting Machine
Cutting Width:max 1600mm
Cutting Thickness:0.3 -- 2mm
Cutter Material:LD+Ni
Motor Power :11kw
Cutter Shaft:¢150mm
Cutter Material:40Cr
Max slitting NO.: 9 pieces
Cutter quantity: 8pieces

C. Tension Table

Manual control, wheel

D. Recoiler
Tape outer diameter:¢508-¢1500mm
Motor Power :15kw
Car Motor Power: 4kw
Roller Diameter:¢508mm
Tape Max roll weight:5T
Main shaft diameter:¢180mm
Car tape width:600mm--1600mm
Car loading weight:5T
Car Roll diameter:¢1000-¢1500mm
Car moving speed:4m/min

Machine loading
All machines need one 40ft container to hold.
