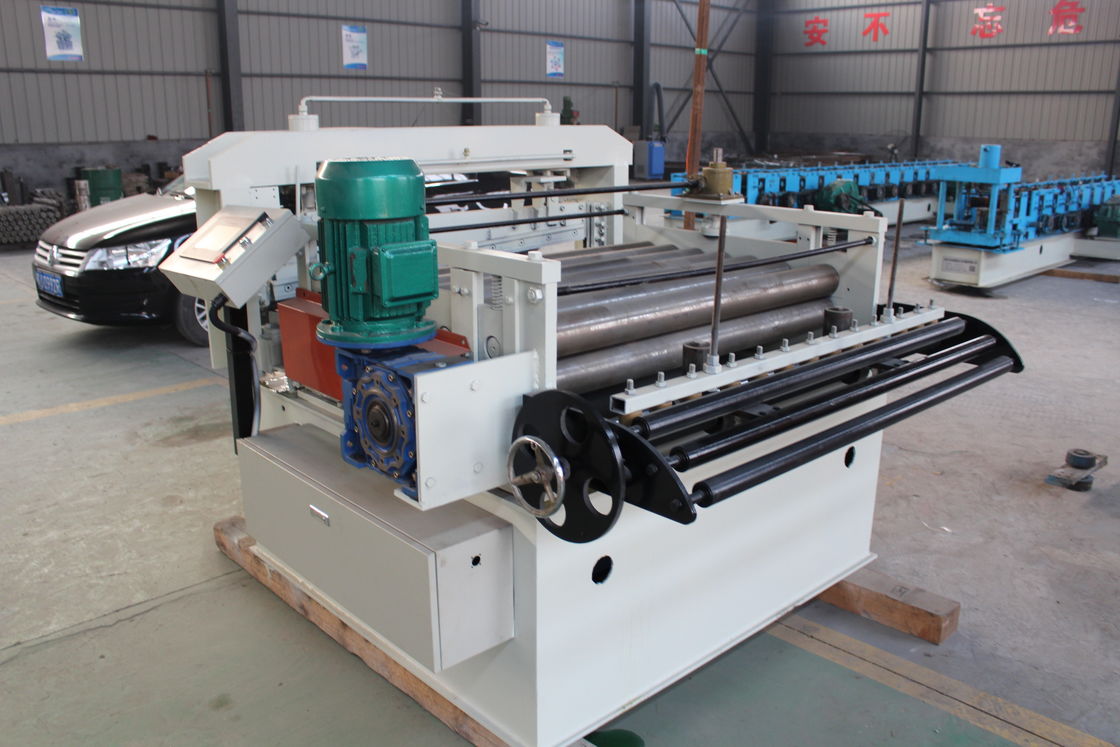

Name: Professional Cut To Length And Slitting Line Adjustable Speed 20 - 100 M / Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: برش به طول خط
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Professional Cut To Length And Slitting Line Adjustable Speed 20 - 100 M / Min

cut to length line machine,coil cut to length line

coil cut to length line

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO, CE

شماره مدل:

برش به طول خط

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

تولید کننده حرفه ای برش سرعت قابل تنظیم - به - خط تولید طول

مواد برش:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت مواد:

0.3 میلی متر -4 میلی متر

سرعت کار:

10 متر در دقیقه - 60 متر در دقیقه (قابل سفارشی سازی)

وزن سیم پیچ:

5 تن / 7 تن / 10 تن (قابل سفارشی سازی)

عرض سیم پیچ:

600 میلی متر - 1600 میلی متر

وزن ماشین:

13000 کیلوگرم

دقت عرض برش:

0.01 ± - 0.05 ± میلی متر

برجسته کردن:

cut to length line machine,coil cut to length line

coil cut to length line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

1 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

5 ست در 60 روز

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Professional Manufacturer Adjustable Speed Cut - To - Length Line Production

A CTL or a blanking line will take a master coil of flat rolled steel from the integrated or mini mill and unroll, flatten and cut to length sections to a precise length and stack the sheets into a bundle. Equipment will vary according to the width, thickness and incoming coil weight. Depending on the final end product to be utilized from the cut sheet, flatness may be a critical point and use of a double leveler, skin pass or stretcher leveler may be employed into the process.

Main Technical Specifications

No.

Item

Description

1 Main Specification	1 Raw Material	Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa
	2 Raw Material Thickness	0.3 mm - 3.0 mm
	3 Raw Material Width	600 mm - 1600 mm
	4 Tape Inner Diameter	φ 480 mm - φ 530 mm
	5 TapeOuter Diameter	φ 1600 mm
	6 Coil Weight	5 tons - 10 tons
	7 The Highest Slitting LineSpeed	20 m/min - 100 m/min
	8 Cutting Width Precision	± 0.01 - ± 0.05 mm
	9. Rated Operational Voltage	240 V, 3 Phase, 60 Hz
	10. Total Weight	13000 KG
	11. Working Space(L*W)	20000 mm*6000 mm
2 Decoiler Machine Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 tons - 10 tons
	5 Max Working Speed	20 m/min - 100 m/min
	6 Tape Tight Range	φ 480 mm - φ 530 mm
	7 Shaft Diameter	φ180 mm
2 Decoiler Machine Specification	8 Roller Effective Length	1600 mm
	9 Drive Moter Power	5.5 KW
	10. Loading Car Diameter	φ 700 mm - φ 1500 mm
	11 Loading Car Weight	5 tons - 10 tons
	12 Car Speed	About 4 m/min
3 Planing Machine	1 Shaft Diameter	φ 130 mm
	2 Shaft No.	Up 2 rows, down 3 rows
	3 Mid Plate Thickness	40 mm
	4 Mulch Applicator Diameter	φ 130 mm
	5 Film Width	1600 mm
4 Tension Table	1 Segregation Shaft	3 pcs, 1 pcs pressure shaft
4 Tension Table	2 Air Cylinder	3 pcs
5 Electrical Control System	1 sets. Computer Control System is Siemens PLC.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
