Name: 5/7/8/10/15 Tons Heavy Hydraulic Decoiler And Uncoiler Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دیکویلر هیدرولیک سنگین
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

5/7/8/10/15 Tons Heavy Hydraulic Decoiler And Uncoiler Machine

hydraulic decoiler,5t hydraulic decoiler,hydraulic decoiler machine

5t hydraulic decoiler

hydraulic decoiler machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

دیکویلر هیدرولیک سنگین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

5/7/8/10/15Tons دستگاه رول شکل دهی سقف هیدرولیک سنگین

مواد خام:

PI، PPGI، PL، PPGL

سیستم کنترل:

PLC

ضخامت:

0.3-1.5 میلی متر

تایپ کنید:

دفع کننده

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

3 کیلو وات

برجسته کردن:

hydraulic decoiler,5t hydraulic decoiler,hydraulic decoiler machine

5t hydraulic decoiler

hydraulic decoiler machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

40 مجموعه در هر ماه

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

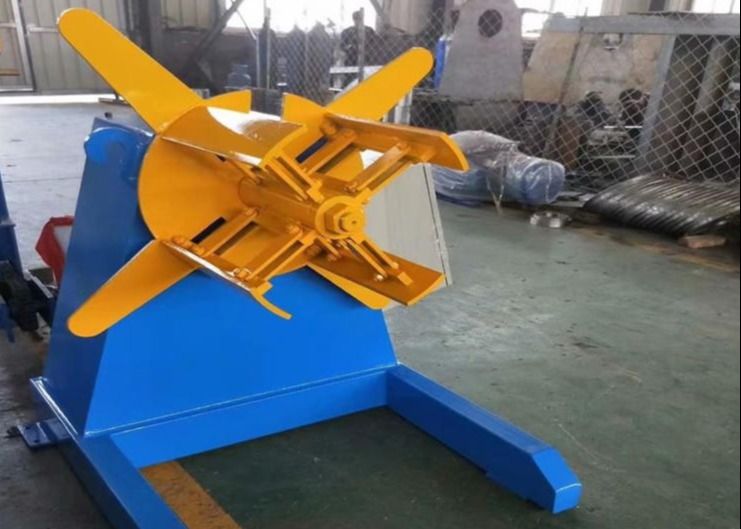

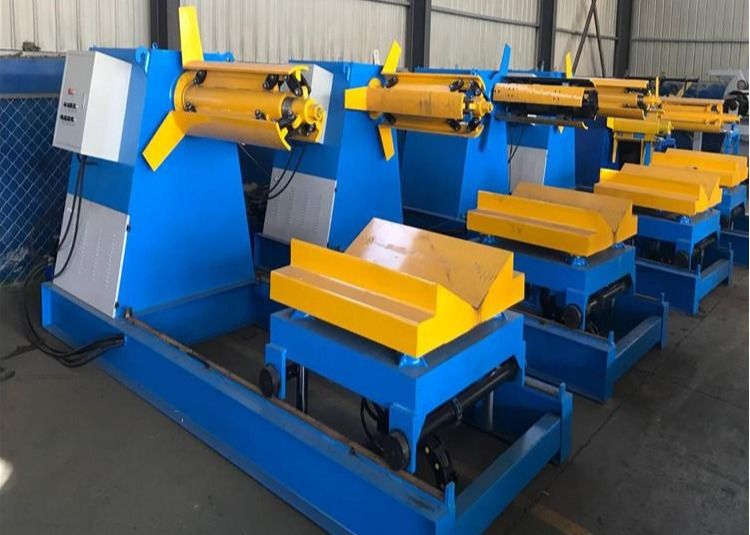

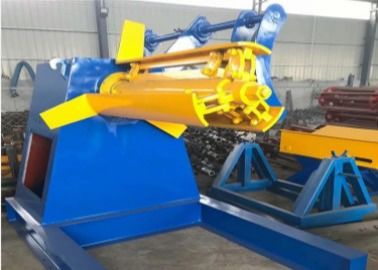

5/ 7/8/10/15Tons Heavy Hydraulic Decoiler

Hydraulic decoiler, used to support the steel coil and provide tension to the steel belt. It is an uncoiler composed of a frame, a main shaft, a telescopic drum and a braking device. The roll material of the hydraulic automatic decoiler rolls freely on the movable shaft seat of the left and right boxes to open the roll material. The steel plate advances to the leveling machine on the conveyor frame, which is the first process of the leveling machine.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-1.5 mm
3	Working Speed	12m /min
4	Shaft Diameters	85mm
5	Dimension (LWH)	330150170
6	Machine Weight	2500 KG
7	Electrical Control System	automatic
8	Drive Motor Power	3KW
9	type	Decoiler
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)

Application

Uncoiling machine is a special equipment for sheet metal leveling. It can be used for leveling line steel plates and uneven plates to form uncoiling, leveling, shearing production lines and other sheet product production lines according to related configurations. Suitable for industries such as machinery, vehicles, metal products, household appliances, steel structures, and decorations..

Advantage

The mandrel of the uncoiler is connected to four sector-shaped plates through the sloped dovetail slots on the four end faces. Each sector-shaped plate is prevented from moving in the axial direction through a radial slide at the end, but can expand and contract in the radial direction. A rotating oil cylinder is connected to the tail end of the spool shaft, and the piston rod of the oil cylinder drives the front-end quadrangular shaft to slide axially through the draw rod of the spool shaft, thereby driving the sector plate to expand and contract radially. The nominal diameter of the reel can be increased by adding four fan-shaped plates. The frame of the decoiler can be moved on the guide rail of the machine base and driven by a hydraulic cylinder to realize position control. In order to strengthen the stability of the reel, a support arm device is designed on the head of the reel. When there is a steel coil on the reel, the support arm is driven by an oil cylinder to support the head of the reel. The support arm is usually retracted without affecting The steel coil is rolled up

5/7/8/10/15 Tons Heavy Hydraulic Decoiler And Uncoiler Machine 0
