Name: Automatic Adjustable Width 0.3mm PPGI Steel Coil Slitting Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: برش به طول خط
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Automatic Adjustable Width 0.3mm PPGI Steel Coil Slitting Machine

0.3mm steel coil slitting machine,0.3mm metal coil slitting machine,PPGI steel coil slitting machine

0.3mm metal coil slitting machine

PPGI steel coil slitting machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO, CE

شماره مدل:

برش به طول خط

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه برش کویل فولادی با عرض خودکار

مواد برش:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت مواد:

0.3 میلی متر -3 میلی متر

سرعت کار:

20 متر در دقیقه - 80 متر در دقیقه (قابل سفارشی سازی)

وزن سیم پیچ:

5 تن / 7 تن / 10 تن (قابل سفارشی سازی)

برش قطعات:

2 - 18 عدد

وزن ماشین:

15000 کیلوگرم

دقت عرض برش:

0.01 ± - 0.05 ± میلی متر

برجسته کردن:

0.3mm steel coil slitting machine,0.3mm metal coil slitting machine,PPGI steel coil slitting machine

0.3mm metal coil slitting machine

PPGI steel coil slitting machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

1 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

20 مجموعه ماهانه

محصولات مرتبط

ویدئو

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

بهترین قیمت رو بدست بیار

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

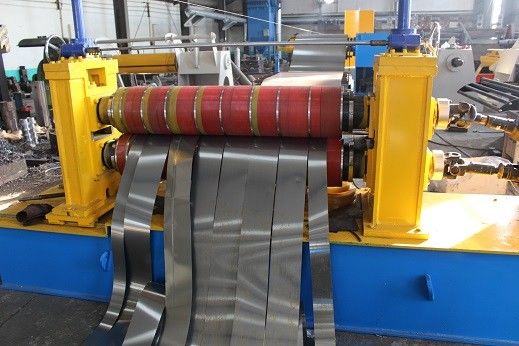

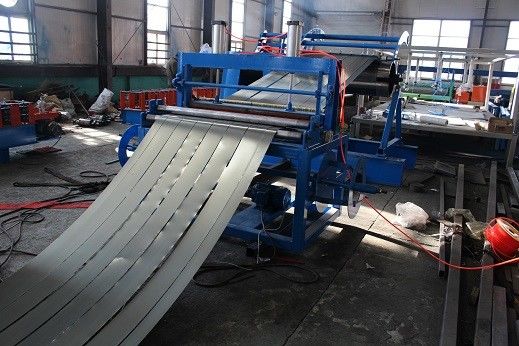

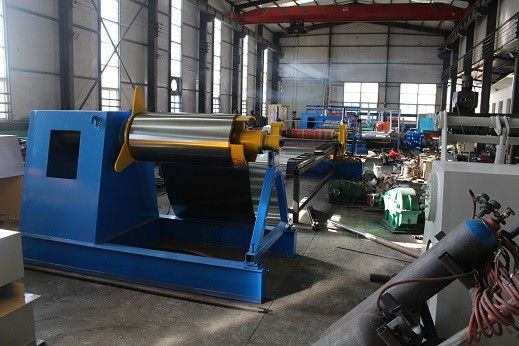

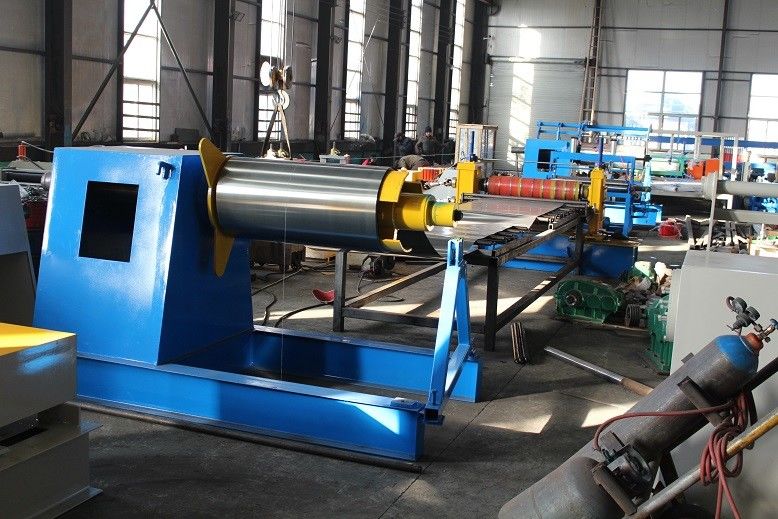

Automatic Adjustable Width Steel Coil Slitting Machine

Automatic Adjustable Width Steel Coil Slitting Machine is used for uncoiling, slitting, and winding the metal coil into a coil with the required width. It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after surface coating.

No.	Item	Description
1	Raw Material	Galvanized, Aluminum,Color steel
2	Raw Material Thickness	0.3 mm - 3.0 mm
3	Raw Material Width	600 mm - 1600 mm
4	Tape Inner Diameter	φ 480 mm - φ 530 mm
5	Tape Outer Diameter	φ 1600 mm
6	Coil Weight	5 tons - 10 tons
7	The Highest Slitting LineSpeed	20 m/min - 100 m/min
8	Cutting Width Precision	± 0.01 - ± 0.05 mm
9	Rated Operational Voltage	240 V, 3 Phase, 60 Hz
10	Total Weight	13000 KG
11	Working Space(L*W)	20000 mm*6000 mm

Application

It is suitable for longitudinal shearing of metal strips and rewinding the slitted narrow strips into rolls. It is widely used in transformers, motors, home appliances, automobiles, building materials, packaging industries, etc.

Advantage

It is composed of uncoiling (unwinding), leading positioning, slitting and slitting, coiling (rewinding), etc. It has the characteristics of convenient operation, high cutting quality, high material utilization, and stepless speed regulation of cutting speed.

Automatic Adjustable Width 0.3mm PPGI Steel Coil Slitting Machine 0
