Name: Simple Sheet PPGI Metal Cut To Length Machine Automatic 15m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: خط برش
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Simple Sheet PPGI Metal Cut To Length Machine Automatic 15m/Min

ppgi metal cut to length machine,15m/min metal cut to length machine,ppgi automatic cut to length machine

15m/min metal cut to length machine

ppgi automatic cut to length machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO, CE

شماره مدل:

خط برش

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

برش ورق فلزی ساده به طول دستگاه اتوماتیک

مواد برش:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت نورد:

0.3 میلی متر -8 میلی متر

ظرفیت تولید:

8-15 متر در دقیقه

گارانتی قطعات اصلی:

1 سال

جنس شفت اصلی::

ماشینکاری تکمیل فولاد 45# و سپس شل

قدرت موتور:

3 کیلو وات

نیروگاه ایستگاه هیدرولیک:

3 کیلو وات

برجسته کردن:

ppgi metal cut to length machine,15m/min metal cut to length machine,ppgi automatic cut to length machine

15m/min metal cut to length machine

ppgi automatic cut to length machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

2 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

5 ست در 60 روز

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

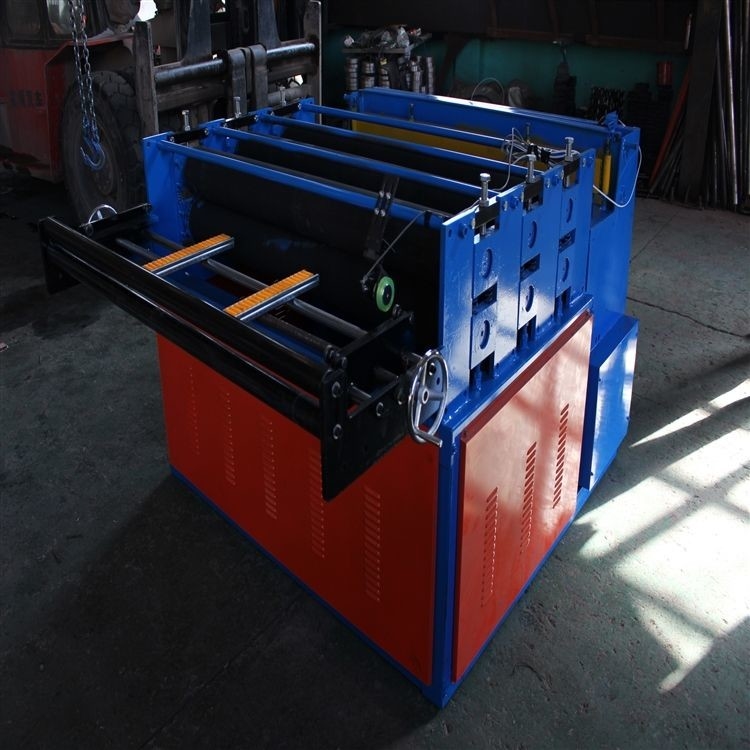

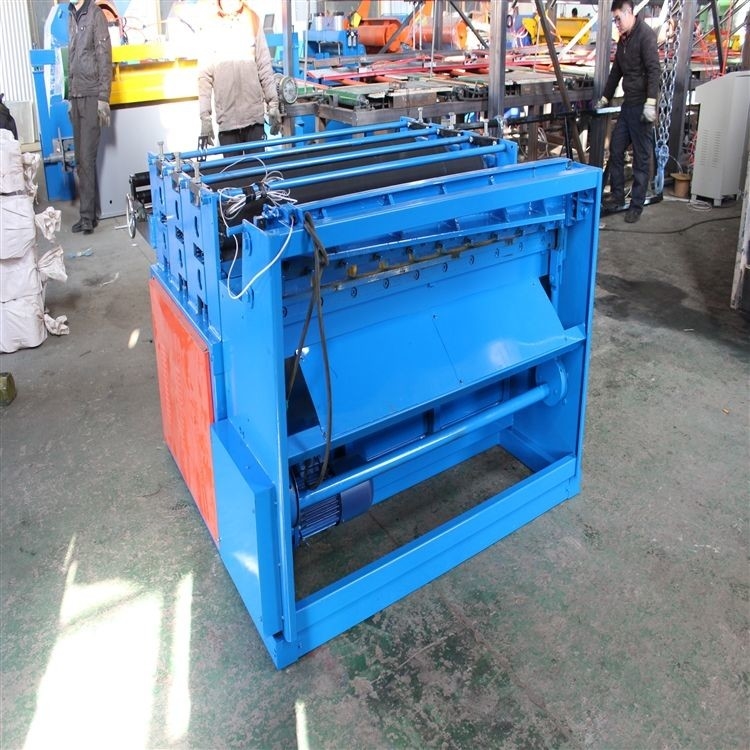

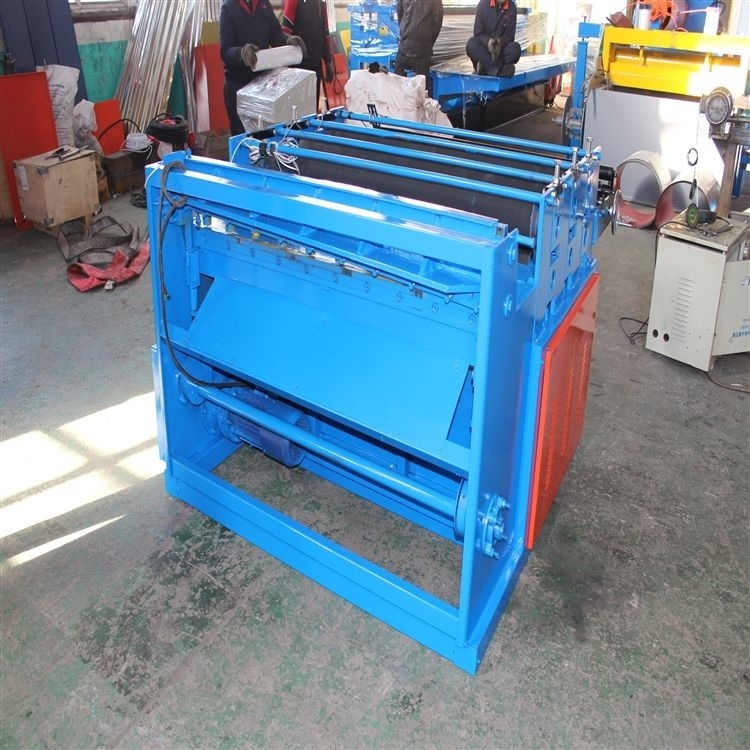

Simple Metal Sheet Cut To Length Machine Automatic

The slitting production line consists of three main parts: decoiler, slitter and rewinder. The material is fed from the uncoiler through the nip between the two circular cutting wheels (one at the top and the other below), and then re-wound in the slit covering on the recoiler. The equipment supplier and the end user must work together, so the appropriate components, shank size, tool kit, horsepower and tension are suitable for the material to be cut.

Specifications

Material Thickness	0.3-0.8 mm
Working Speed	8-15m/min
Roller Stations	3 stations
Material of Roller	rubber
Material of Main Shaft	45 steel forged
Main Motor Power	3 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Advantage

Our split line is to maintain high accuracy while allowing instant changes. Large-capacity coilers and full control of machinery, using the most advanced technology to supervise quality control and automation, we provide production lines on time and on budget!
