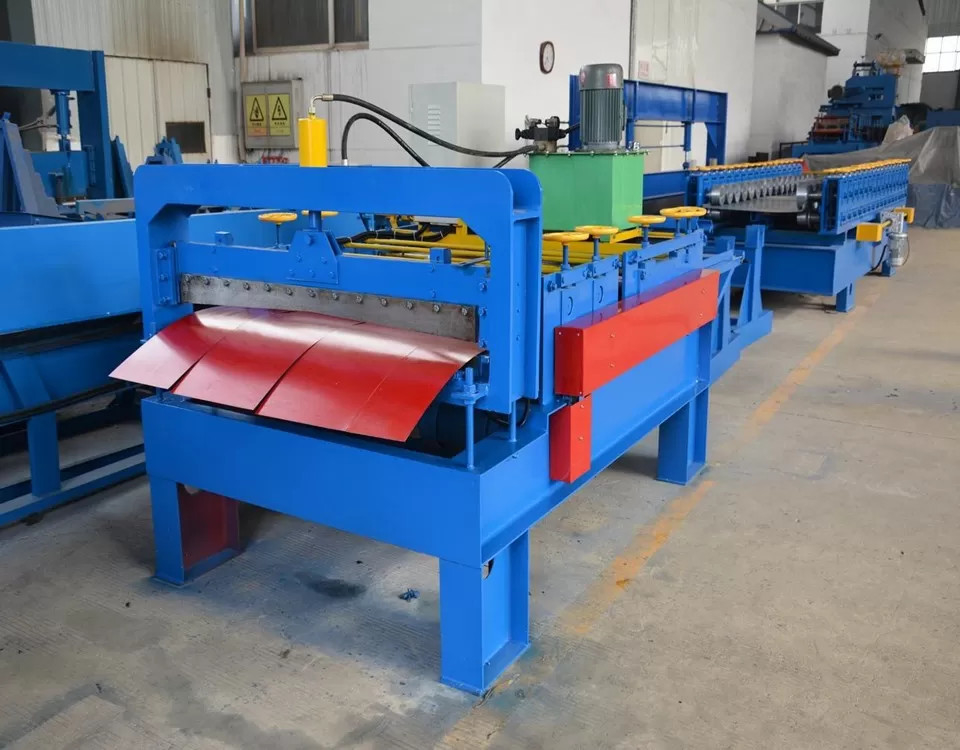

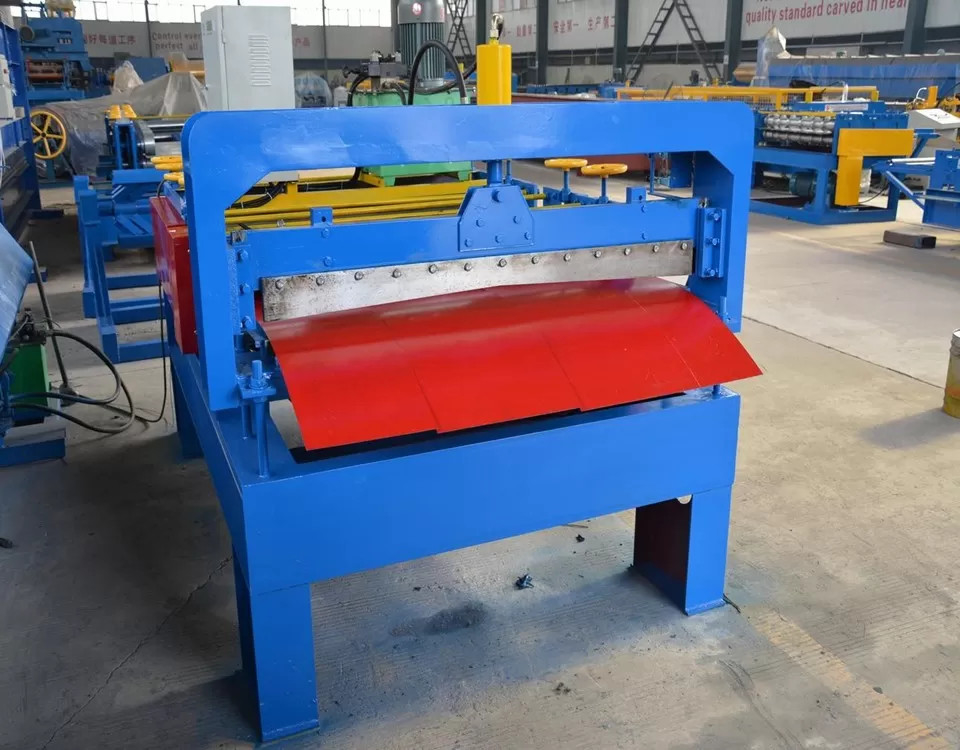

Full Automatic Metal Plate Cutting Slitting Machine PLC Control
Our production is capable of covering all the clientele’s needs and is divided into categories on the basis of dimensions and thickness of the material to machine and production quantities. These parameters make it necessary to divide the cut-to-length cutting lines into LIGHT, MEDIUM and HEAVY.
LIGHT up to 15 Ton, 1550 mm, thickness from 0.2 mm to 3 mm, speeds up to 200-350 m/min
MEDIUM up to 30 Ton, 1600 mm, thickness from 4 mm to 12.7 mm, speeds up to 150 m/min
HEAVY up to 35 Ton, 2200 mm, thickness from 8 mm to 16 mm, speeds up to 20-40 m/min
Main Technical Specifications
| 1 |
Suitable to process |
Color steel plate |
| 2 |
Width of the plate |
1000-1250mm |
| 3 |
Rollers |
3 rows |
| 4 |
Dimensions |
3.5*1.55*1.51m |
| 5 |
Power |
4+4kw |
| 6 |
Thickness of the plate |
0.3-0.7mm |
| 7 |
Productivity |
25m/min |
| 8 |
Voltage |
380V 50Hz 3phases |
| 9 |
Hydraulic |
40# |
| 10 |
Processing precision |
Within 1.00mm |
| 11 |
Control system |
PLC control |
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
