Name: High Precise PPGI Metal Coil Slitting Line Steel Cut To Length
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: برش به طول خط
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

High Precise PPGI Metal Coil Slitting Line Steel Cut To Length

ppgi metal coil slitting line,high precise metal coil slitting line,ppgi steel coil slitting line

high precise metal coil slitting line

ppgi steel coil slitting line

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO, CE

شماره مدل:

برش به طول خط

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خط برش کویل فولادی فلزی با دقت بالا به خط طول

مواد برش:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سرعت کار:

10-12 متر در دقیقه

مشخصات:

9.6*1.6*2.0 متر (L*W*H)

قدرت هیدرولیکی:

7.5 کیلو وات

وزن ماشین:

8.5 تن

برجسته کردن:

ppgi metal coil slitting line,high precise metal coil slitting line,ppgi steel coil slitting line

high precise metal coil slitting line

ppgi steel coil slitting line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

1 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

20 مجموعه ماهانه

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

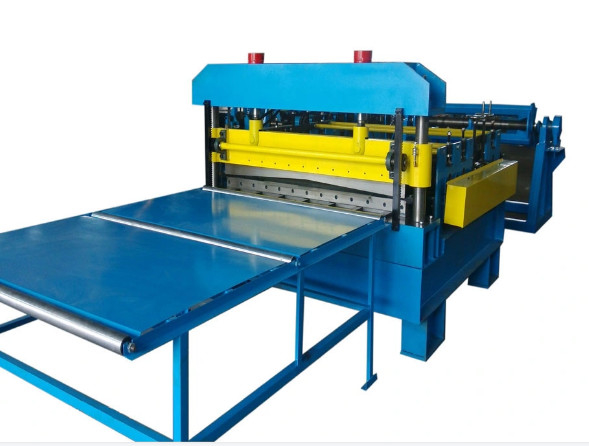

High Precise Metal Steel Coil Slitting Line Cut To Length Line

High Precise Metal Steel Coil Slitting Line Cut to Length Line.High Precise Metal Steel Coil Slitting Line Cut to Length Line is one most popular type of metal plate slitting lines. It consists of Decoiler, Feeding system, Leveling System, Slitting System, Scrape coil system, Correcting&Damping system, Recoiler and Electrical system. It's suitable for processing thickness range from 0.2mm to 2.0mm thick, metal sheet width from 300-1250mm steel coils. This slitting line can run with max work speed 30m/min. We adopt 18mm wall board to make machine frame strong, moreover, PLC with touch screen operation make the line simple and easy to usage.

Detailed information:

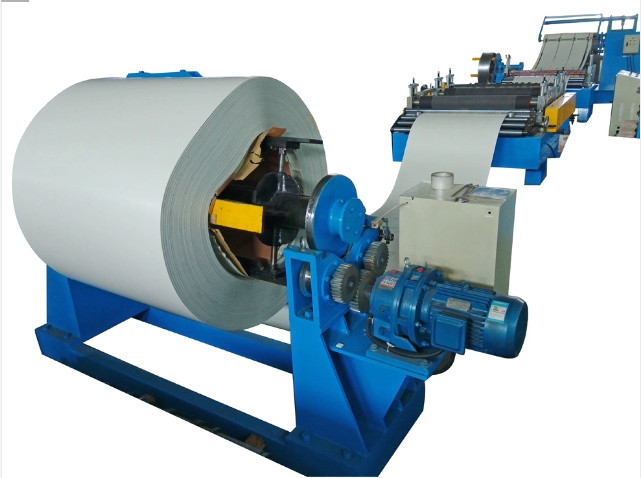

1) Motor decoiler
Motor:	5.5kw
Capacity (Max):	8 Tons
Inner diameter	450-550mm
Coil Width (Max.):	1250mm

2) Coil transmission
Transport roller:	45# forge steel, quenched and chrome coated 0.05mm
Width of roller:	1500mm
Motor power:	3KW

3) slitting part
Disc slitting blade
Number of disc blade:	11groups
Material of disc blade:	Cr12mov
Material of main shaft:	steel and Rubber covered
Slitting speed:	20-30m/min
Motor power:	11KW
Scrape recoiler
Rotary according to slitting device

4) Electrical control cabinet
Electrical system:	PLC Panasonic 380V, 50HZ, 3 phase(also depend on customer demand)
Transducer	YASKAWA, made in Japan
Weight	10.5 tons
Production area	18.5x3.5x2.1meters

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
