PPGI Heavy Duty Decoiler Steel Coil Slitting Line Machines

ppgi steel coil slitting line,925mm steel coil slitting line,heavy duty decoiler steel slitting equipment

925mm steel coil slitting line

heavy duty decoiler steel slitting equipment

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU fms

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین آلات برش کویل فلزی ماشین های خط برش کویل سنگین

ماده سیم پیچ:

گالوالوم، گالوانیزه، PPGI، آلومینیوم، مس

ابعاد (L*W*H):

2600 میلی متر * 1600 میلی متر * 1750 میلی متر

عرض سیم پیچ:

925 میلی متر - 1250 میلی متر

سرعت کار:

10 متر در دقیقه - 30 متر در دقیقه

وزن در حال بارگذاری:

5 تن

برجسته کردن:

ppgi steel coil slitting line,925mm steel coil slitting line,heavy duty decoiler steel slitting equipment

925mm steel coil slitting line

heavy duty decoiler steel slitting equipment

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20' FLC

زمان تحویل

20 روز کاری

شرایط پرداخت

T/T، Western Union، L/C، D/A، D/P

قابلیت ارائه

100 مجموعه در هر ماه

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

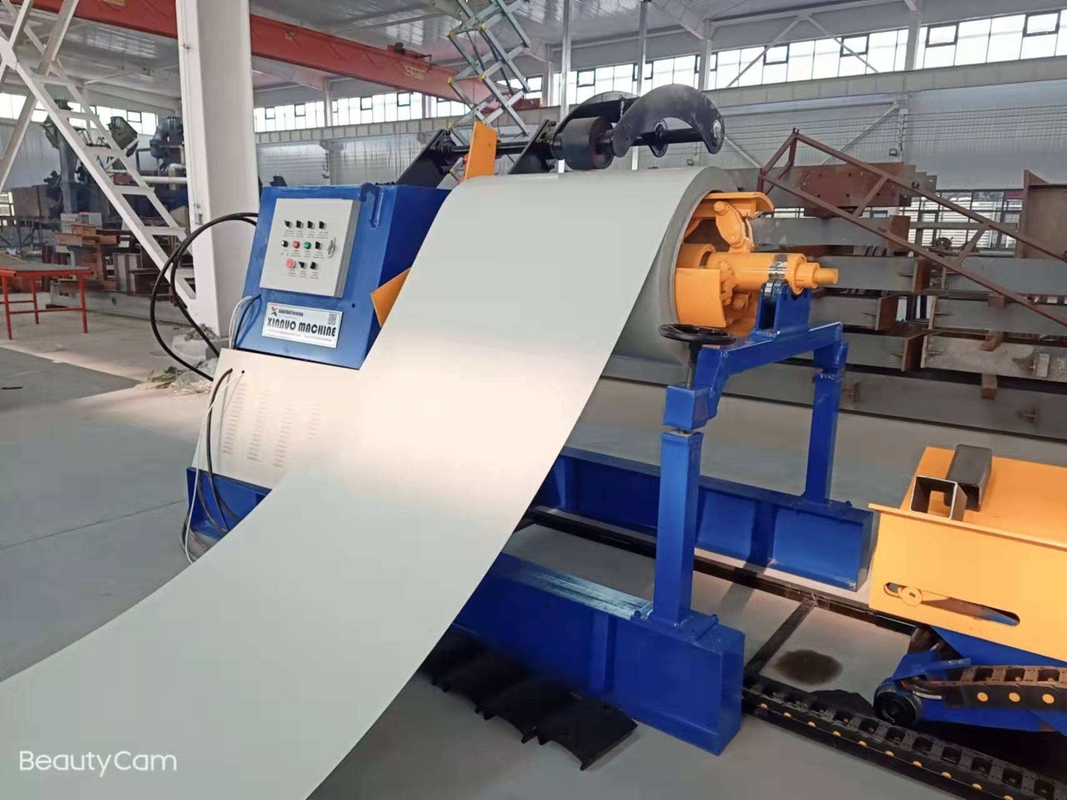

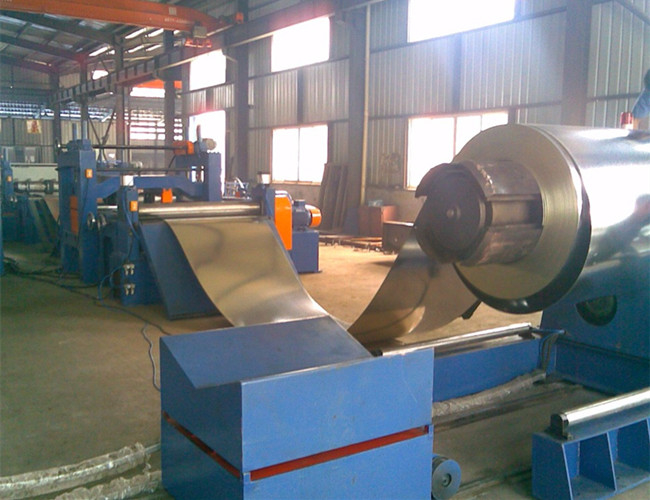

Teel Coil Slitting Machines Heavy Duty Decoiler Slitting Line Machines

Teel Coil Slitting Machines Heavy Duty Decoiler Slitting Line Machines :
Roll slitting machine is a length ways cutting production line, for cutting metal sheet strip. roll slitting machine can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the slitted metal sheet strips, for getting narrow metal sheet strip coils.roll slitting machine is for metal sheet strip coil cutting service center, press machine stamping punching, metal sheet strip processing,etc.

Specification

Technical Parameters of Sliting Machinery
1. Specifications:
b. Tensile strength	b≤500Mpa, S≤300Mpa
c. Thickness	0.5-2.0mm
d. Width	500-1600(Max) or customized
e. Coil I.D.	508mm
f. Coil O.D.	1600mm(Max)
g. Weight	15T(Max) or customized
h. Diameter of leveling rollers	65mm
i. Distance of leveling rollers	70mm
j. Material of leveling rollers	GCr15, hardness: HRC 55-60
k. Total weight of machines	around 30T
2. Finished products parameters
a. Diagonal tolerance	≤±1mm/2000mm
b. Length tolerance	≤±0.5mm/2000mm
3. Other parameters
a. Power	380V/50Hz/3Ph or customized
b. Line speed	0-60m/min or customized
c. Capacity	around 100kW
d. Area of the whole production line	(about) 25m(L)×7m(W)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
