Name: Metal Color Steel Cut To Length And Slitting Line High Efficiency
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: برش به طول خط
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Metal Color Steel Cut To Length And Slitting Line High Efficiency

50m/min Mini Slitting Machine,Metal Color Steel Mini Slitting Machine,Slitting And Cut To Length Line

Metal Color Steel Mini Slitting Machine

Slitting And Cut To Length Line

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO, CE

شماره مدل:

برش به طول خط

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

رنگ فلزی با راندمان بالا برش به طول و خط دستگاه برش

ظرفیت تولید:

50 متر در دقیقه

گارانتی قطعات اصلی:

1 سال

ولتاژ:

380 V/415 V

ابعاد (l x w x h):

11000 میلی متر * 1300 میلی متر X 1350 میلی متر

وزن ماشین:

2-3 تن

قدرت:

18.5 کیلو وات

ضخامت مواد:

0.5-2.0 میلی متر

برجسته کردن:

50m/min Mini Slitting Machine,Metal Color Steel Mini Slitting Machine,Slitting And Cut To Length Line

Metal Color Steel Mini Slitting Machine

Slitting And Cut To Length Line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

1 عدد 40 اینچ FLC

زمان تحویل

35 روز کار

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

20 مجموعه ماهانه

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

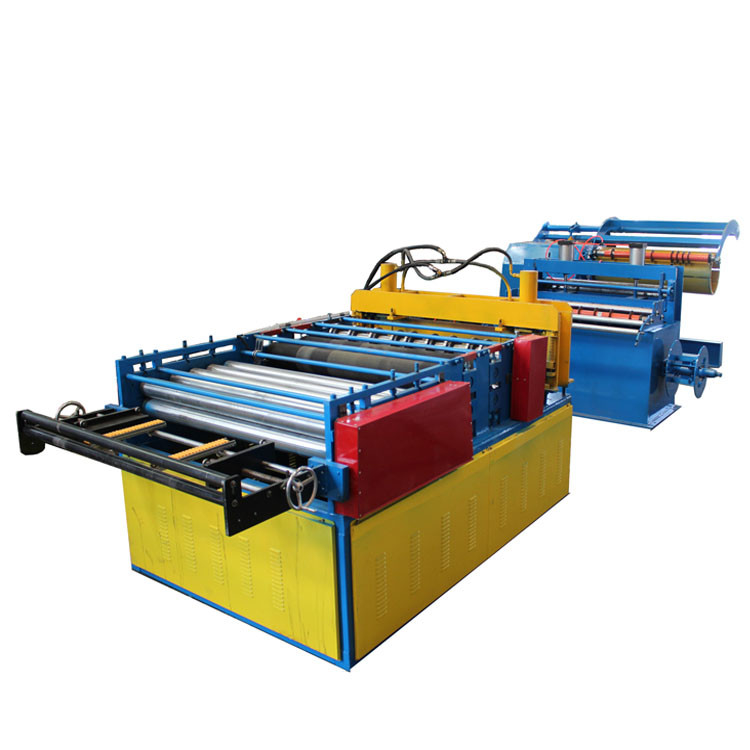

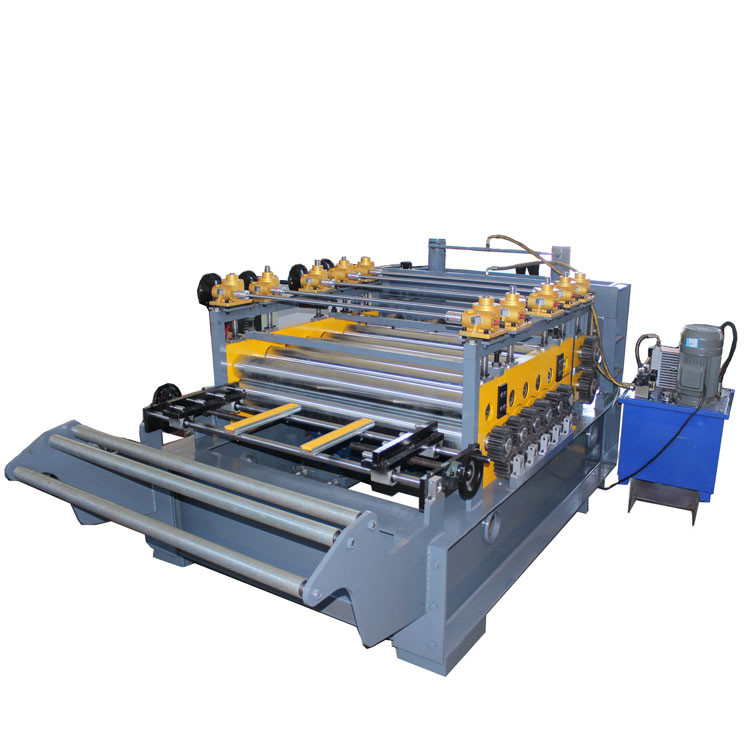

High Efficiency Metal Color Steel Cut To Length And Slitting Machine Line

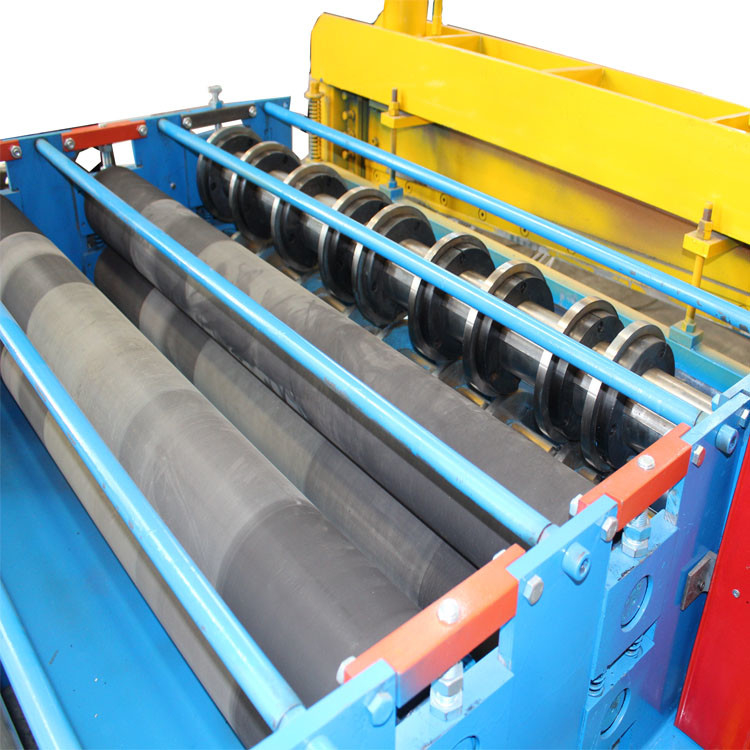

Mini Slitting Machine uses extremely sharp rotary blades to cut large coil into strips of metal that have narrower widths. Circular Blades or Knives can be moved to make sheet metal strips of varying widths. Mini Slitter is designed as coil slitter only. Used for both sheet metal pieces or rolls of metal coil.

Material Thickness	0.5-2.0 mm
Working Speed	0-50m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	18.5 KW
Electrical Hydraulic Station Power	7.5 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received
