Name: Auto Line Electric Double Head Decoiler 360 Degree Rotation
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 5T- Decoiler هیدرولیک اتوماتیک با ماشین
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Auto Line Electric Double Head Decoiler 360 Degree Rotation

Auto Line Electric Decoiler Forming Machine,50 m/min Double Head Decoiler,360 Degree Rotation Double Head Decoiler

50 m/min Double Head Decoiler

360 Degree Rotation Double Head Decoiler

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

5T- Decoiler هیدرولیک اتوماتیک با ماشین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

Decoiler Electric Auto Line Forming Machine Stacker Double Head Decoiler

ماده مناسب:

فولاد نواری، GI، PPGI، AL

ابعاد (L*W*H):

11000 میلی متر * 1300 میلی متر X 1350 میلی متر

محور گسترش مواد:

200-600 میلی متر

سرعت کار:

50 متر در دقیقه

وزن در حال بارگذاری:

1500 کیلوگرم

قدرت:

4 کیلو وات

ضخامت مواد:

0.5-2.0 میلی متر

ماده غلتکی:

فولاد فورج 45#

ولتاژ:

380 V/415 V

برجسته کردن:

Auto Line Electric Decoiler Forming Machine,50 m/min Double Head Decoiler,360 Degree Rotation Double Head Decoiler

50 m/min Double Head Decoiler

360 Degree Rotation Double Head Decoiler

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20' FLC

زمان تحویل

20 روز کاری

شرایط پرداخت

T/T، Western Union، L/C، D/A، D/P

قابلیت ارائه

100 مجموعه در هر ماه

محصولات مرتبط

ویدئو

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

بهترین قیمت رو بدست بیار

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

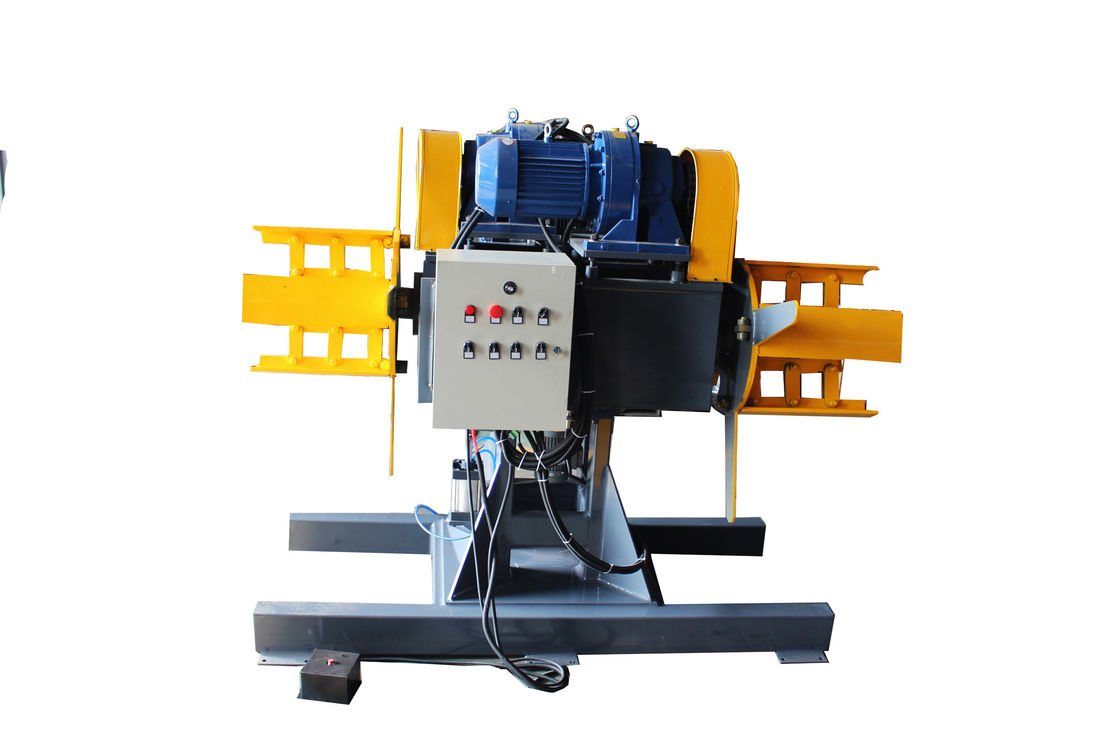

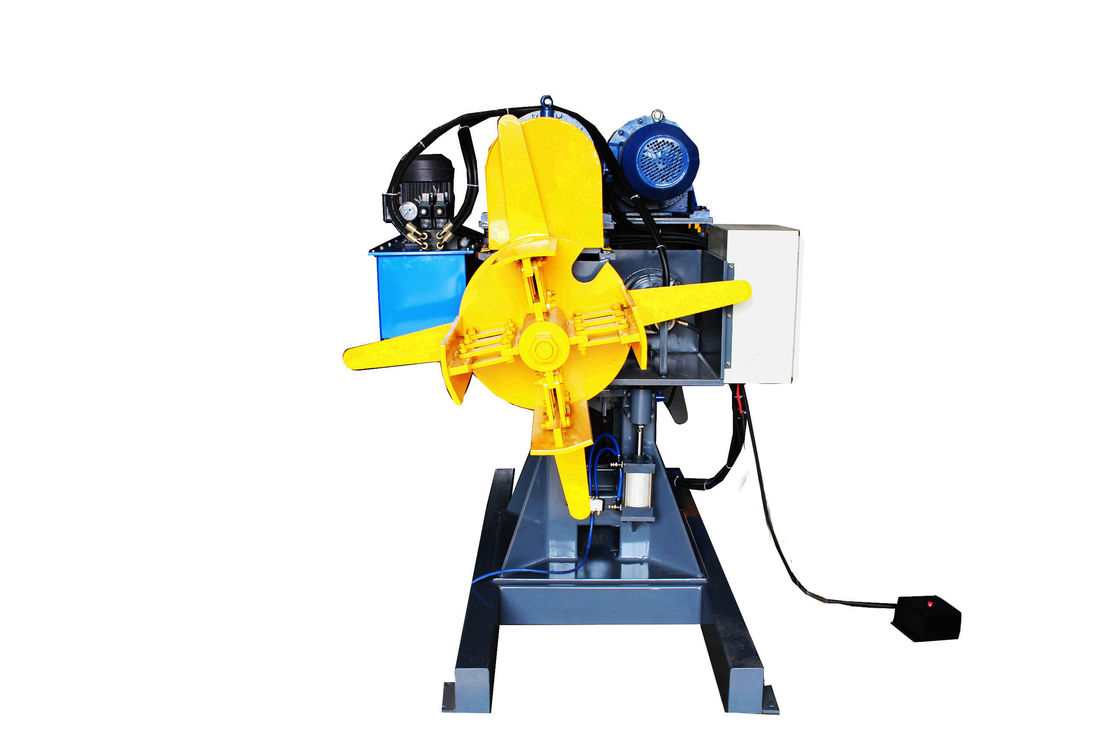

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler 360 degree rotation. used to support the steel coil and provide tension to the steel belt. It is an uncoiler composed of a frame, a main shaft, a telescopic drum and a braking device. The roll material of the hydraulic automatic decoiler rolls freely on the movable shaft seat of the left and right boxes to open the roll material. The steel plate advances to the leveling machine on the conveyor frame, which is the first process of the leveling machine.

Specification

Material Thickness	0.5-2.0 mm
Working Speed	0-50m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	18.5 KW
Electrical Hydraulic Station Power	7.5 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Advantages

1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
