Name: 480V Hydraulic Decoiler Machine CE Steel Coil Uncoiler Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: خط برش اتوماتیک
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

480V Hydraulic Decoiler Machine CE Steel Coil Uncoiler Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO, CE

شماره مدل:

خط برش اتوماتیک

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

480 ولت هیدرولیک Decoiler دستگاه CE فولاد کویل Uncoiler دستگاه

وزن:

1 سال

موتور:

3 کیلو وات

ابعاد (L*W*H):

حدود 1800mm*1200mm*1500mm

ولتاژ:

380 ولت 220 ولت 480 ولت

وزن:

حدود 1000 کيلوگرم

سبک کنترل::

PCL

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

2 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

5 ست در 60 روز

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

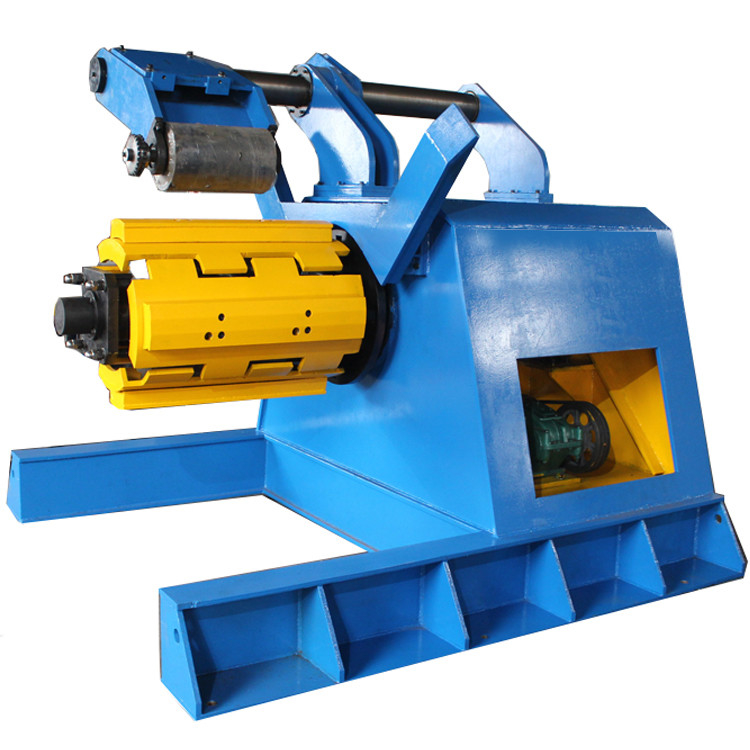

480V Hydraulic Decoiler Machine CE Steel Coil Uncoiler Machine

480V Hydraulic Decoiler Machine CE Steel Coil Uncoiler Machine .To install the coil with material on the decoiler you must do as follow:

take of self centering coil reel from the stand;
insert coil reel inside of the metal coil;
expand self centering coil reel with a hand wrench, to fix coil reel inside of the material coil;
install coil reel with metal coil back on the stand,
fix coil reel to stand with brake fixture.

Once you pull out age of the material from the coil - coil starts spinning. For convenient operation and safety decoiler equipped with a friction brake, unwinding handle and expanding wrench.

Safety requirements: lower joint bars must be welded to triangle stands before operation.

Main Technical Specifications

Type of Decoiler	Full automatic
Insied diameter	450-550mm
The largest volume diameter	1300-1600m
Color	blue or according to your request
Wide	1250 mm
Motor power	3kw
Bearing weight	1 Year
Weight	1000kg
Dimension(LWH)	about 1800mm1200mm1500mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
