Name: Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 5T- Decoiler هیدرولیک اتوماتیک با ماشین
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T

5T Hydraulic Decoiler,10T Hydraulic Decoiler,Automatic Double Head Decoiler

10T Hydraulic Decoiler

Automatic Double Head Decoiler

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

5T- Decoiler هیدرولیک اتوماتیک با ماشین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

کویل اتوماتیک دو سر فولادی هیدرولیک 5T 10T Decoiler

ماده مناسب:

فولاد نواری، GI، PPGI، AL

ابعاد (L*W*H):

حدود 1.2 متر * 0.8 متر در 1.5 میلی متر

عرض پردازش:

600-1500 میلی متر

سرعت کار:

15-30 متر در دقیقه

وزن در حال بارگذاری:

1500 کیلوگرم

قدرت:

5 کیلو وات

ضخامت مواد:

0.3-2.0 میلی متر

ماده غلتکی:

فولاد فورج 45#

ولتاژ:

380 V/415 V

درجه خودکار:

خودکار

برجسته کردن:

5T Hydraulic Decoiler,10T Hydraulic Decoiler,Automatic Double Head Decoiler

10T Hydraulic Decoiler

Automatic Double Head Decoiler

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20' FLC

زمان تحویل

20 روز کاری

شرایط پرداخت

T/T، Western Union، L/C، D/A، D/P

قابلیت ارائه

100 مجموعه در هر ماه

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

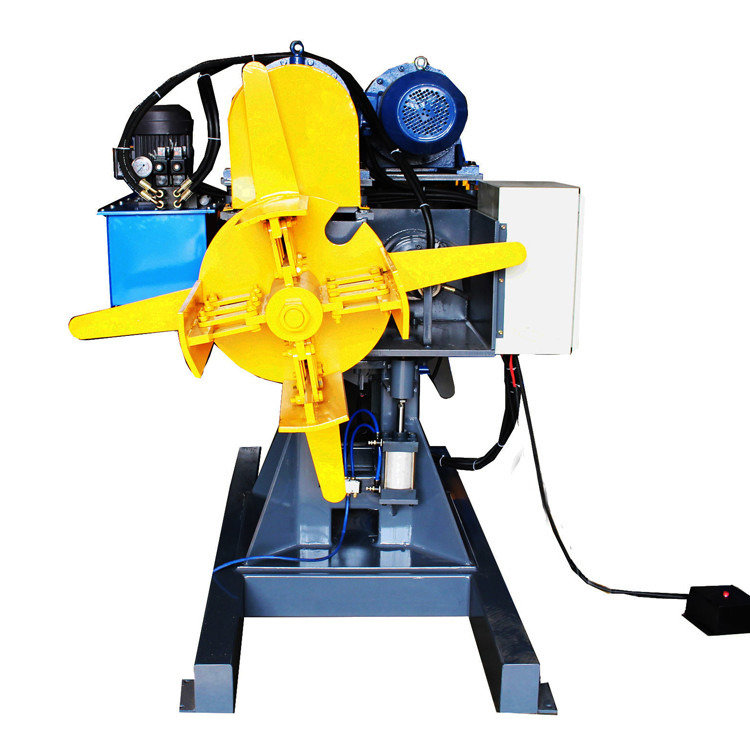

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler production line . The fuction of hydraulic decoiler machine is save labor and make the work more efficiency. Usually most of decoilers can be only suitable for 1250mm width. We adopt 5.5KW electric motor to rotate the shaft, it can decoil automatically, it speed up the whole production line.

Specification

Material Thickness	0.3-2.0 mm
Working Speed	15-30m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Electrical Hydraulic Station Power	5KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Advantages

1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
