Name: 30m/Min Steel Coil Cut To Length And Slitting Line With Decoiler And Recoiler
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: بریدن
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

30m/Min Steel Coil Cut To Length And Slitting Line With Decoiler And Recoiler

30m/Min Cut To Length Slitting Line,Steel Coil Cut To Length And Slitting Line

Steel Coil Cut To Length And Slitting Line

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO, CE

شماره مدل:

بریدن

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

برش سیم پیچ فولادی 30 متری در دقیقه به طول و خط شکاف با دیکویل و رکویل

مواد برش:

گالوالوم، گالوانیزه

ضخامت مواد:

0.2 میلی متر -3 میلی متر

سرعت کار:

30 متر در دقیقه (قابل سفارشی سازی)

وزن سیم پیچ:

می توان سفارشی کرد

برش قطعات:

2-30 عدد

وزن ماشین:

حدود 10000 کیلوگرم

دقت عرض برش:

0.01 ± - 0.05 ± میلی متر

برجسته کردن:

30m/Min Cut To Length Slitting Line,Steel Coil Cut To Length And Slitting Line

Steel Coil Cut To Length And Slitting Line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

2 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

5 ست در 60 روز

محصولات مرتبط

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

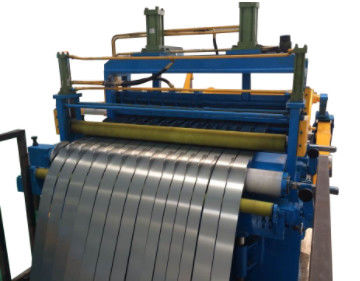

30m/Min Steel Coil Cut To Length And Slitting Line With Decoiler And Recoiler

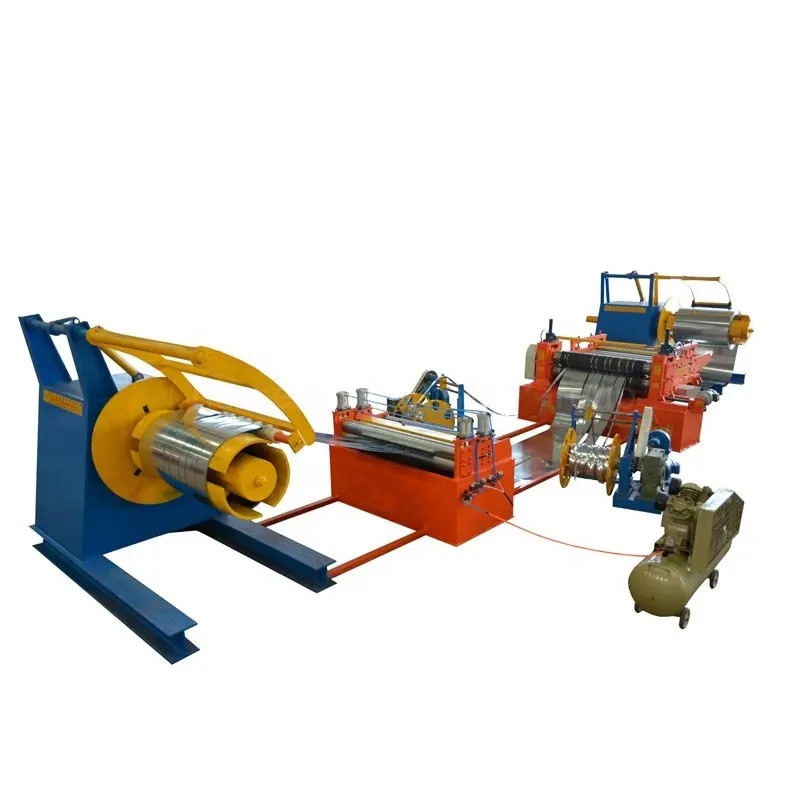

30m/Min Steel Coil Cut To Length And Slitting Line With Decoiler And Recoiler consists of three main parts: a decoiler, a slitter, and a rewinder. As the material is fed through the nip between the two circular cutting wheels (one at the top and the other below), it is re-wound in the slit covering on the recoiler. Equipment suppliers and end users must work together to determine the appropriate components, shank size, tool kit, horsepower, and tension for the material being cut.

Specifications

Weight	about 10T
Suitable Material	GI PPHI
Width of Raw Material	Maximum 1250mm
Thickness of Raw Material	Maximum 2mm
Productivity	30m/min
Total Power	20KW
Voltage	380V 50Hz 3Phases
Control System	PLC Control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
