Name: Multifunction Metal Coil Leveling 1.5mm PPGI Cut To Length And Slitting Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: خط برش
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

Multifunction Metal Coil Leveling 1.5mm PPGI Cut To Length And Slitting Line

1.5mm Slitting Line,Multifunction Slitting Line,PPGI Cut To Length Slitting Line

Multifunction Slitting Line

PPGI Cut To Length Slitting Line

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO, CE

شماره مدل:

خط برش

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

تسطیح کویل فلزی چند منظوره و برش به طول

مواد برش:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت مواد:

0.2mm -1.5mm

سرعت کار:

8 متر در دقیقه - 30 متر در دقیقه

وزن سیم پیچ:

5 تن / 7 تن / 10 تن

برش قطعات:

2-30 عدد

وزن ماشین:

13000 کیلوگرم

دقت عرض برش:

0.01 ± - 0.05 ± میلی متر

برجسته کردن:

1.5mm Slitting Line,Multifunction Slitting Line,PPGI Cut To Length Slitting Line

Multifunction Slitting Line

PPGI Cut To Length Slitting Line

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

2 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

5 ست در 60 روز

محصولات مرتبط

ویدئو

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

بهترین قیمت رو بدست بیار

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

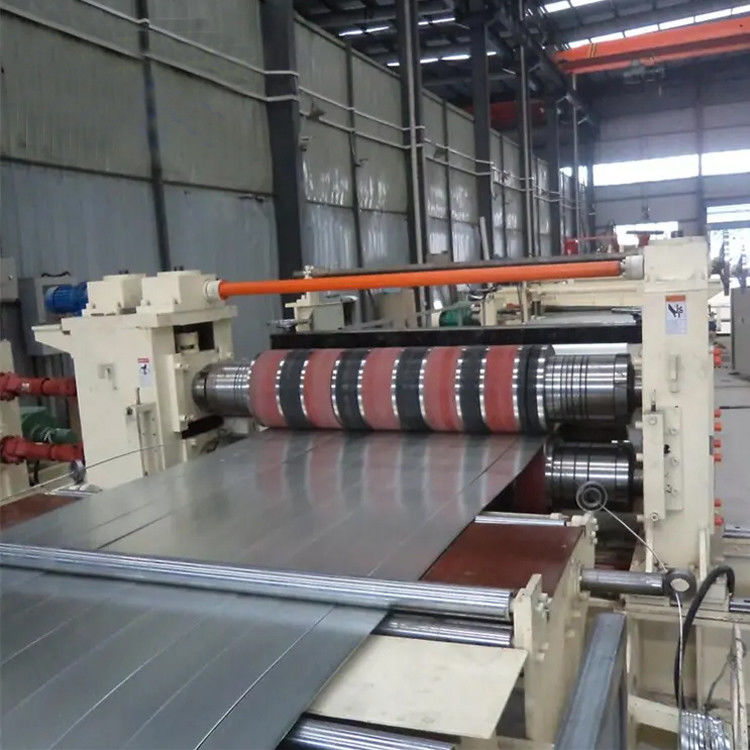

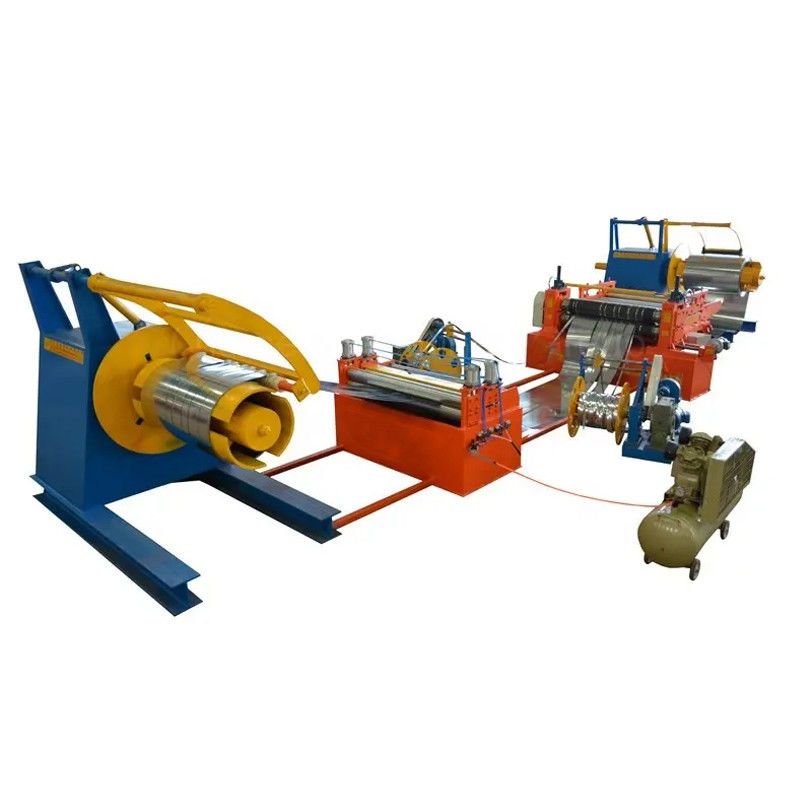

Multi-Function Metal Coil Leveling Slitting And Cut To Length

Slitting machines, also known as vertical stitching, are used to sew cold rolling steel coils, hot rolling steel coils, galvanized steel coils, organic silicon steel coils, stainless steel coils, aluminum coils, etc., according to the production needs of users and cutting needs.

Specifications

No.

Item

Description

1 Main Specification	1 Raw Material	Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa
	2 Raw Material Thickness	0.2 mm - 3.0 mm
	3 Raw Material Width	600 mm - 1600 mm
	4 Tape Inner Diameter	φ 480 mm - φ 530 mm
	5 TapeOuter Diameter	φ 1600 mm
	6 Coil Weight	5 tons - 10 tons
	7 /Slitting No.	Max 30 pcs
	8 The Highest Slitting LineSpeed	8 m/min - 30 m/min
	9 Minimum Cutting Line Width	35 mm
	10 Cutting Width Precision	± 0.01 - ± 0.05 mm
	11. Rated Operational Voltage	380 V, 3 Phase, 60 Hz
	12. Total Weight	14000 KG
	12. Working Space(L*W)	20000 mm*6000 mm

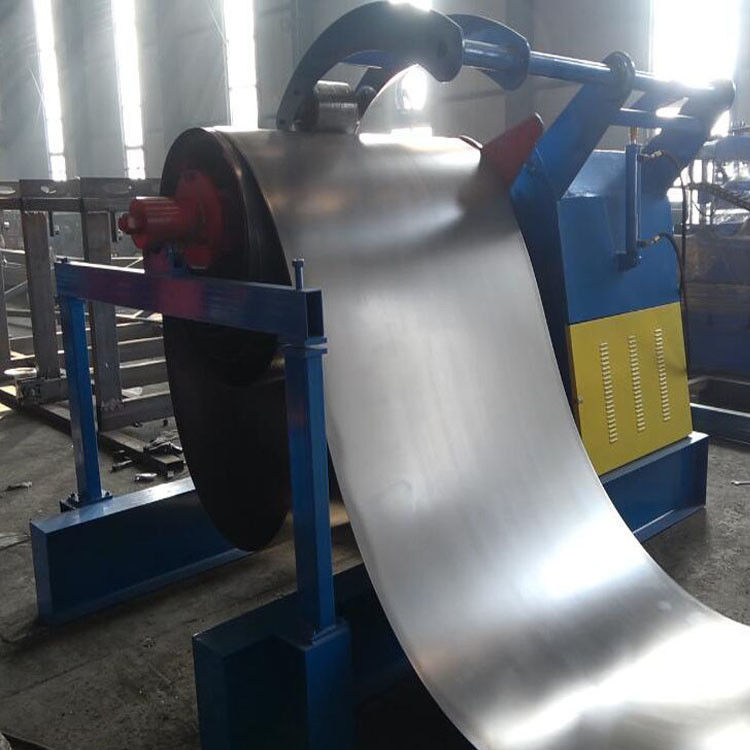

2 Decoiler Machine Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 /7/10 tons
	5 Max Working Speed	8 m/min - 30 m/min
	6 Tape Tight Range	φ 480 mm - φ 530 mm
	7 Shaft Diameter	φ180 mm
3 Decoiler Machine Specification	8 Roller Effective Length	1600 mm
	9 Drive Moter Power	5 KW
	10. Loading Car Diameter	φ 700 mm - φ 1500 mm
	11 Loading Car Weight	5 /7/ 10 tons
	12 Car Speed	About 4 m/min

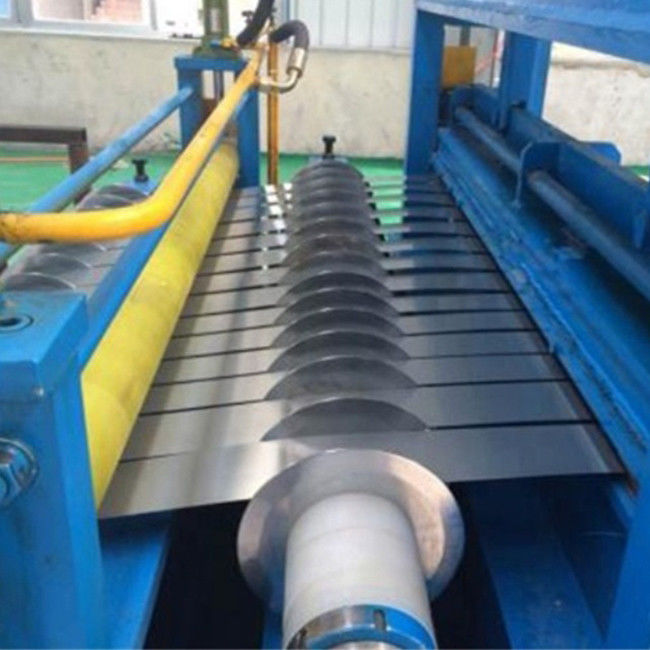

4 Slitting Machine Specification	1 Cutting Width	Max φ 1600 mm
	2 Cutting Thickness	0.2 mm - 2.0 mm
	3 Cutter Shaft Diameter	φ180 mm
	4 Cutter Shaft Material	Cr 40
	5.Cutter Size	200 mm300 mm15 mm
	6 Cutter Material	Cr12MoV
	7 Cutter Spacer Size	180 mm240 mm15 mm
	8 Drive Moter	15 kw
	9 Cutting No.	2-30 pcs
	10 Cutter No.	Max 32 pcs
5 Planing Machine	1 Shaft Diameter	φ 130 mm
	2 Shaft No.	Up 2 rows, down 3 rows
	3 Mid Plate Thickness	40 mm
	4 Mulch Applicator Diameter	φ 130 mm
	5 Film Width	1600 mm
6 Tension Table	1 Segregation Shaft	3 pcs, 1 pcs pressure shaft
6 Tension Table	2 Air Cylinder	3 pcs
7 Recoiler Specification	1 Tape Outer Diameter	Max φ 1600 mm
	2 Tape Width	600 mm - 1600 mm
	3 Tape Inner Diameter	φ 480 mm - φ 530 mm
	4 Coil Weight	5 - 10 tons
	5 Max Working Speed	8 m/min - 30 m/min
	6 Tape Tight Range	φ 485 mm - φ 530 mm
	7 Shaft Diameter	φ 180 mm
	8 Roller Effective Length	1750 mm
	9 Drive Moter Power	30 kw
8 Recoiler Specification	10 Loading Car Diameter	φ 1000 mm - φ 1750 mm
	11 Loading Car Weight	Max 10 tons
	12 Car Speed	About 4 m/min
9 Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10 Edge Collecting Machine	1 Drive Moter	3 kw
	2 Collecting Material Width	Max 20 mm
	3 Double Edge Width	400 mm

Application

it use to cut the big coils into different width coils,the thickness can 0.3-3mm GI PPGI , the working speed can reach 40 meter per min .

Max width of steel coils can use 1250mm

Advantage

Cangzhou famous cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines.

It is located in botou city. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
