Name: 2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مینی خط برش اتوماتیک
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > برش به طول و خط برش >

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

high speed slitter slitting line machine,hydraulic uncoiler slitting line,40m/min slitting line with recoiler

hydraulic uncoiler slitting line

40m/min slitting line with recoiler

محل منبع:

سرزمین اصلی چین

نام تجاری:

FAMOUSE

گواهی:

ISO, CE

شماره مدل:

مینی خط برش اتوماتیک

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خط برش ساده مینی اسلیتر با سرعت بالا با گیره گیر هیدرولیک و کش

مواد برش:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت مواد:

0.3 میلی متر -3 میلی متر

سرعت کار:

8 متر در دقیقه - 30 متر در دقیقه (قابل سفارشی سازی)

وزن سیم پیچ:

5 تن / 7 تن / 10 تن (قابل سفارشی سازی)

برش قطعات:

2 تا 30 عدد

وزن ماشین:

13000 کیلوگرم

دقت عرض برش:

0.01 ± - 0.05 ± میلی متر

برجسته کردن:

high speed slitter slitting line machine,hydraulic uncoiler slitting line,40m/min slitting line with recoiler

hydraulic uncoiler slitting line

40m/min slitting line with recoiler

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه خط تولید

قیمت

negotiable

جزئیات بسته بندی

2 عدد 40 اینچ FLC

زمان تحویل

60 روز کاری

شرایط پرداخت

L/C ، D/A ، D/P ، T/T

قابلیت ارائه

5 ست در 60 روز

محصولات مرتبط

ویدئو

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

ویدئو

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

بهترین قیمت رو بدست بیار

ویدئو

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.

Product Specifications

Attribute	Value
Product Name	Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler
Cutting Material	Galvalume, Galvanized, PPGI, Aluminum
Material Thickness	0.3 mm - 3 mm
Working Speed	8 m/min - 30 m/min (can be customized)
Coil Weight	5 tons / 7 tons / 10 tons (can be customized)
Slitting Pcs	2 - 30 pcs
Machine Weight	13000 KG
Cutting Width Precision	± 0.01 - ± 0.05 mm

Main Technical Specifications

No.	Item	Description
1	Main Specification	Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa Raw Material Thickness: 0.3 mm - 3.0 mm Raw Material Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Tape Outer Diameter: φ 1600 mm Coil Weight: 5 tons - 10 tons Slitting No.: Max 30 pcs The Highest Slitting Line Speed: 8 m/min - 30 m/min Minimum Cutting Line Width: 35 mm Cutting Width Precision: ± 0.01 - ± 0.05 mm Rated Operational Voltage: 240 V, 3 Phase, 60 Hz Total Weight: 13000 KG Working Space (LW): 20000 mm6000 mm
2	Decoiler Machine Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 tons - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 480 mm - φ 530 mm Shaft Diameter: φ180 mm Roller Effective Length: 1600 mm Drive Motor Power: 5.5 KW Loading Car Diameter: φ 700 mm - φ 1500 mm Loading Car Weight: 5 tons - 10 tons Car Speed: About 4 m/min
4	Slitting Machine Specification	Cutting Width: Max φ 1600 mm Cutting Thickness: 0.3 mm - 2.0 mm Cutter Shaft Diameter: φ180 mm Cutter Shaft Material: Cr 40 Cutter Size: 200 mm300 mm15 mm Cutter Material: Cr12MoV Cutter Spacer Size: 180 mm240 mm15 mm Drive Motor: 15 kw Cutting No.: 2-30 pcs Cutter No.: Max 32 pcs
7	Recoiler Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 485 mm - φ 530 mm Shaft Diameter: φ 180 mm Roller Effective Length: 1750 mm Drive Motor Power: 30 kw Loading Car Diameter: φ 1000 mm - φ 1750 mm Loading Car Weight: Max 10 tons Car Speed: About 4 m/min
9	Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10	Edge Collecting Machine	Drive Motor: 3 kw Collecting Material Width: Max 20 mm Double Edge Width: 400 mm

Recommended Applications

Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.

Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
Repairs will not be performed even during the guarantee period in the follow circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation

Payment Terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.

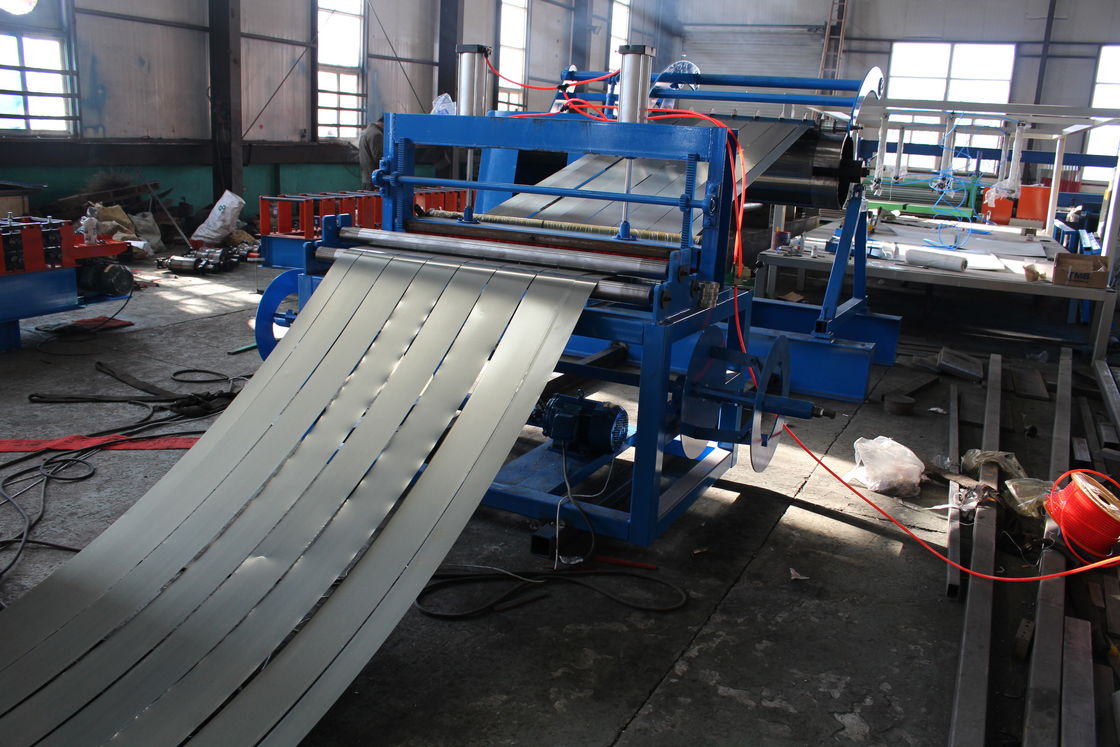

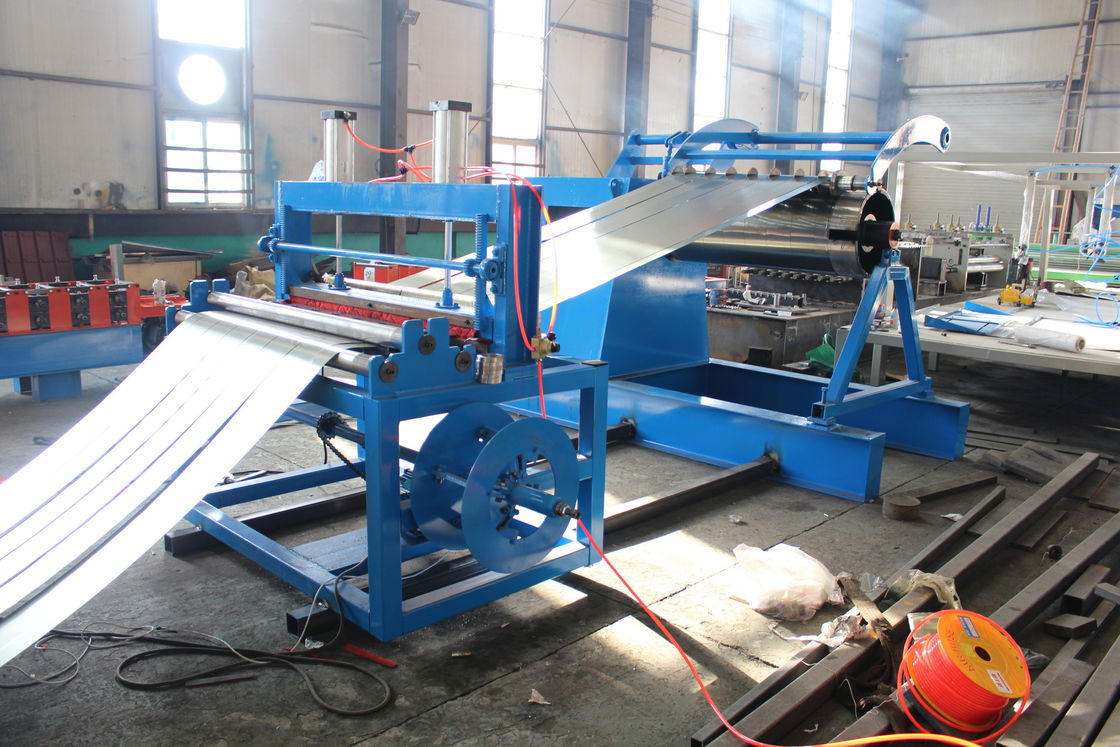

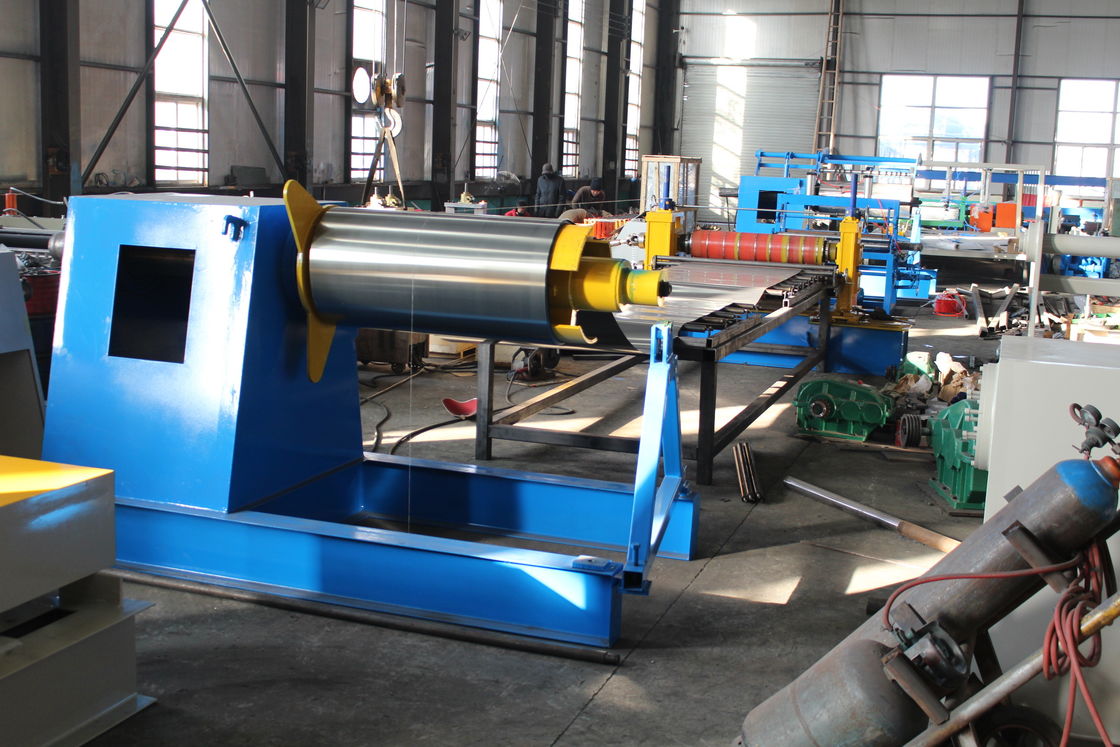

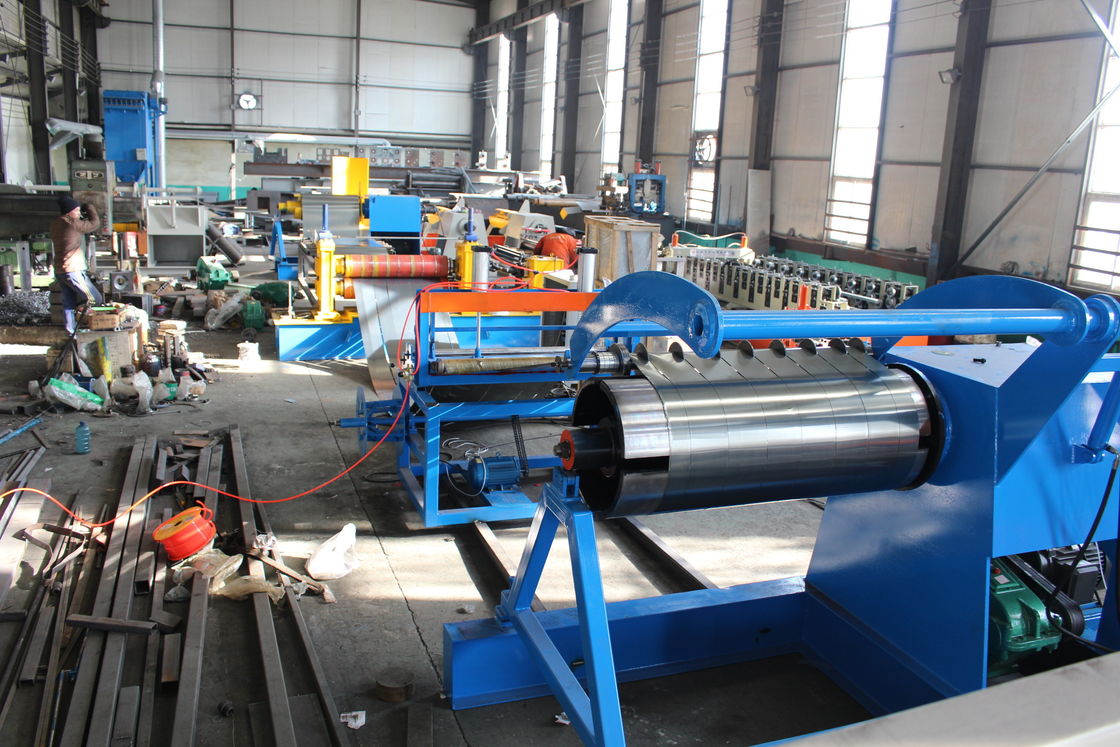

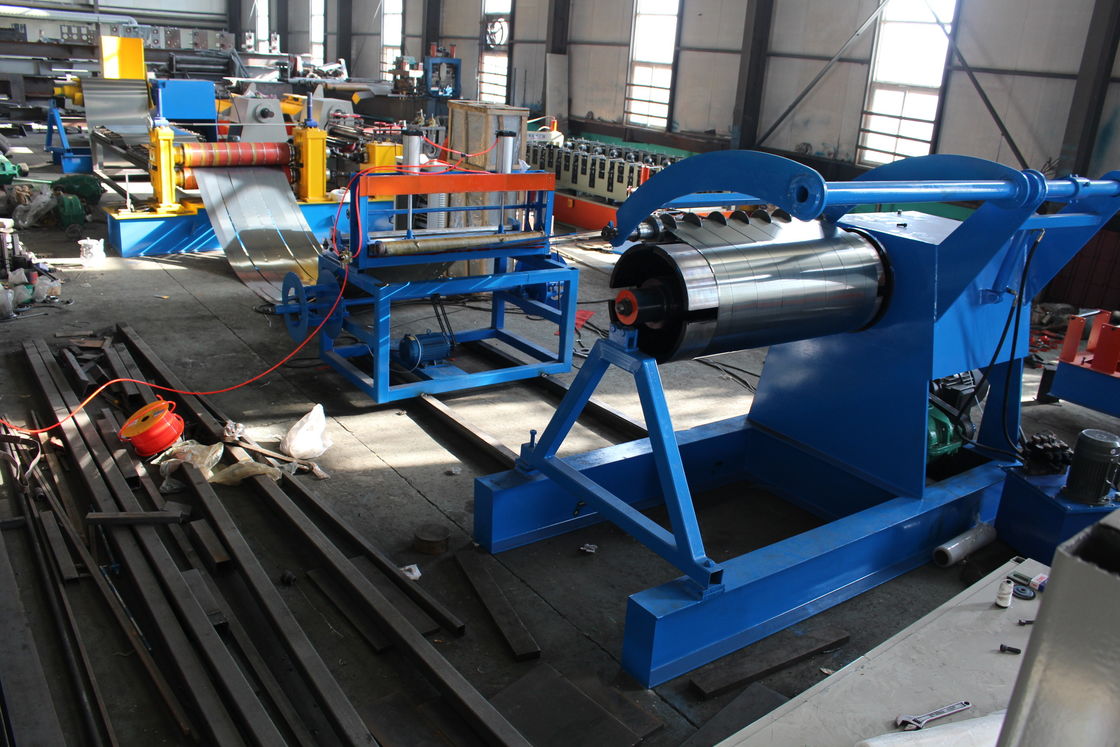

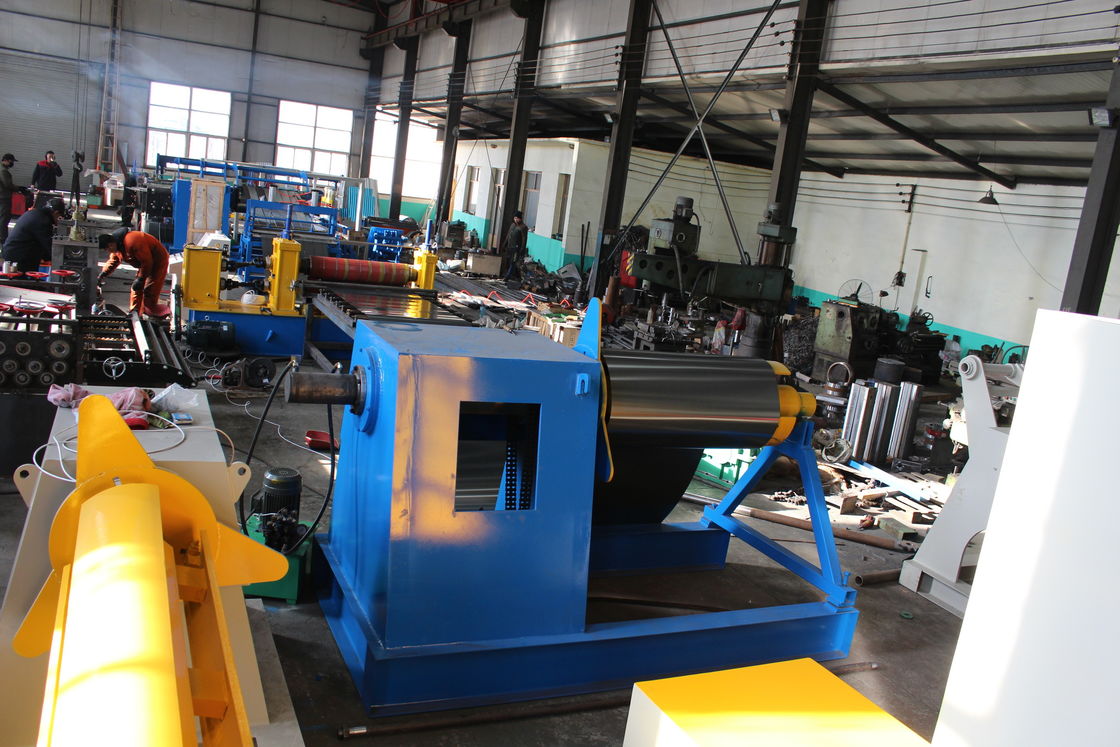

Product Images
